详细信息

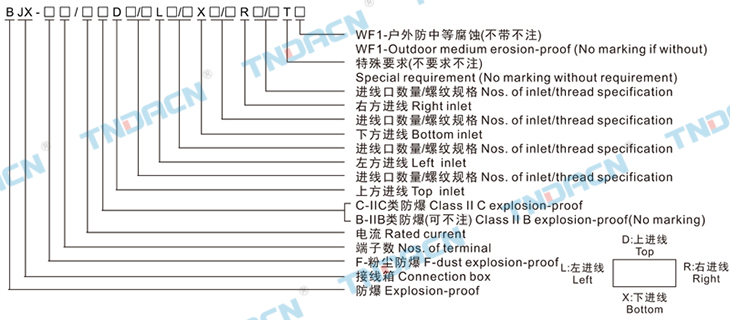

型号含义 Modelimplication
适用范围 Applications
1. 1区、2区危险场所或20区、21区、22区危险场所；
2. ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境；
3. 户内、户外(IP65、IP66*)；
4. 温度组别：T1~T4/T5/T6；
5.应用于石油、化工、航天、军工等场所。
1. Hazardous:division 1 &2,or 20,21,&22;
2. Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammabledust environment;
3. Indoor or outdoor(IP65,IP66*);
4. Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil, Chemical industry, spaceflight,war ind-ustry and so on.
产品特点 Features
1.壳体采用高强度铝合金一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、
防爆性能优良，表面塑粉附着力强，具有良好的防腐能力，表面光洁，美观大方；2.可根据用户要求特制；
3.钢管或电缆布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostaticspray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plasticpower adhesion ability with good anti-corrosion, the surface smooth, elegant appearance.
2. It can be made on request;
3. Wiring with steel tube or cable.
主要技术参数 Main technical parameters
*. 要求IP65， 需注明。 IP65 Requirements must be marked

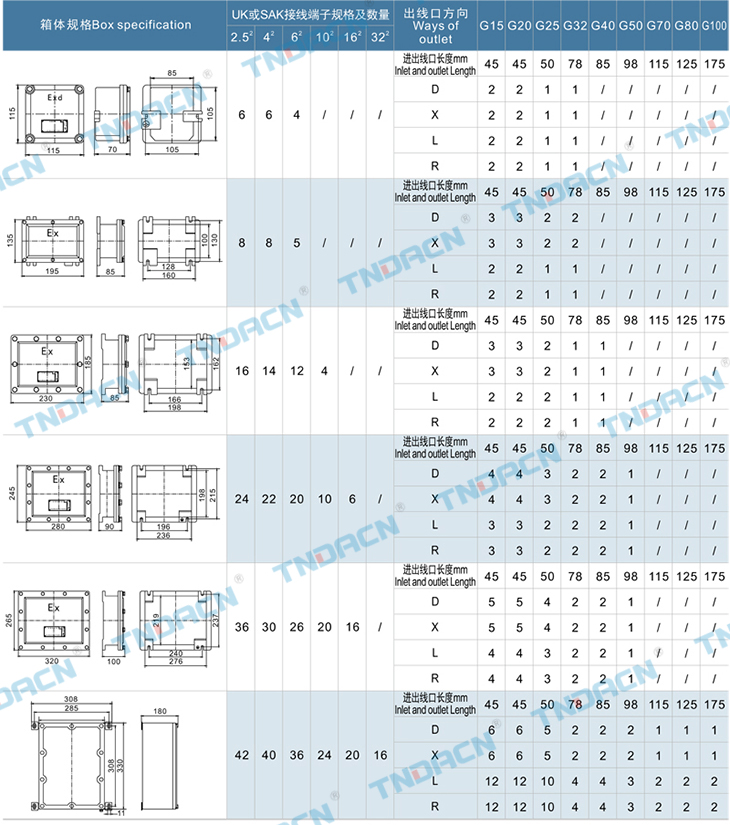

外形及安装尺寸 Ouline & installation dimensions
