ccd94-F系列粉尘防爆免维护节能灯（DIP）

详细信息

详细信息

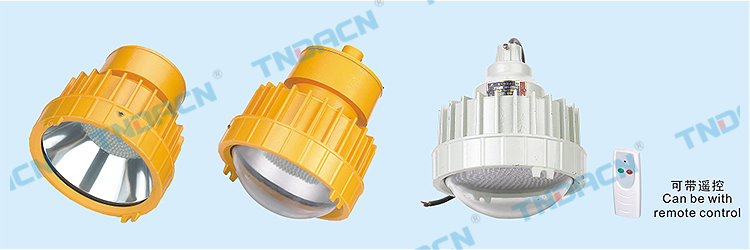

ccd94-F系列粉尘防爆免维护节能灯（DIP）
ccd94-F type dust explosion-proof maintenance-free energy-saving lamp(DIP)

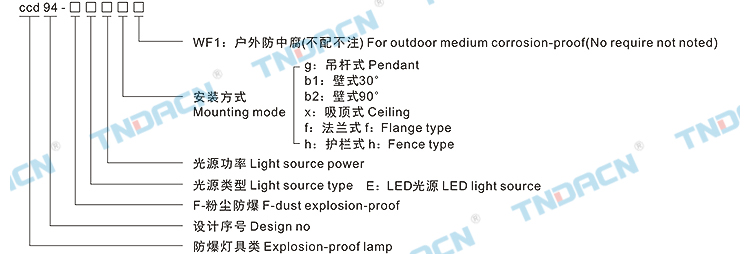

型号含义 Model implication

适用范围 Applications

1.20区、21区、22区危险场所；
2.可燃性粉尘环境；
3.户内、户外(IP54、IP65*)；
4.温度组别：T1~T4/T5/T6；
5.可配装白炽灯、汞灯、高压钠灯、金卤灯；
6.应用于石油、化工、航天、军工等场所。

1.Hazardous:division zone 20,21,&22;
2.Flammable dust atmospheres;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Equipped with incandescent lamp, mercury vapor lamp,
metal halide lamp.
6.Widely using in the fields of oil ,Chemical industry, spaceflight, war ind-ustry and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良，表面塑粉附着力强具有良好的防腐能力，表面光洁，美观大方；
2.灯罩材质采用钢化玻璃，透光性好，抗高能量冲击，且为防眩光设计，经过光学二次设计并得到了实际测试的验证；
3.本系列产品增加了遥控控制系统，为客户带来更加便捷的操作。
4.灯具为一体式结构，但光源腔、接线腔分别独立，安装维护方便，电气性能可靠；
5.反光罩材质为优质铝板，其反光设计经过了专业光学软件的二次配光设计，且通过了实际测试的验证，提高了灯具的使用率；
6.采用密封结构，保证了较强的防水、防尘能力；
7.灯体和出线套采用无线连接，便于用户安装和维修；
8.钢管布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder
adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Lamp housing is made of high borosilicate glass with great transmittance and high energy shock resistance. It's the antiglare design. After designed by special software design of distribution for two times, it can get the confirmation;
3.This series adds remote control system, provide customers a more convenient operation.
4.It is holistic structure, however, the light cavity, connecting line cavity are independent. That's
convenient to install and maintain, and it has reliable electrical properties;
5.Reflector is made of high-quality aluminium plate. After it has been designed by special software design of distribution for two times, and passed the actual test, the availability factor of lamps can be raised;
6.It has sealing structure, which has ensured the great functions of water proof and dust proof.
7.The lampbody and outlet sleeve use wireless wire connecting, it's convenient for the users to install and maintaince.

LED光源特点 The features for LED

1.超长寿命：寿命可到5~10万小时；
2.光效高，无辐射，无光污染：相对于传统高压钠灯和金卤灯节能60%以上；光的利用率高，集中照射地面，避免了空中的光学污染；绿色环保。光源本身不含铅、汞等有害气体；无辐射紫外线红外线；
3.高效二次配光技术：同等功率下使地面提高了30%以上；
4.安装简便可靠；
5.散热控制出色：相对于气温，温升不超过25℃；
6.光色均匀：不加透镜，不以提高亮度而牺牲均匀光色，从而保证无光圈，光色均匀；
7.维护成本低：相对于传统的防爆灯，LED防爆灯维护成本低，经过比较，2年多可收回全部投入成本；
8.宽电压范围：85V~265VAC输入或40V~20VDC输入，启动迅速，亦不存在因气温低而导致难以启动问题；
9.适合范围广，该系列防爆灯可配合太阳能、风能使用，形成绿色节能照明组合，电压可由客户指定12/24VDC或110/220VAC。
10.发光范围大，无眩光：采用的大功率LED均为120°以上发光角，同时消除了眩光，提高了通道照明的安全性；
11.显色性好：显色指数可达80CRI以上，能更真实的还原物体颜色，提高分辨率；
12.低损耗、高效率：整体等效高达85%以上，功率因素达到0.95以上。
1.A long service life: it can last from 50 thousand to 1 million hours.
2.Great luminance, no radiation and no light pollution: The traditional high pressure sodium lamp and metal halide lamp can
not compare with BAD 63 lamp in energy saving. It has higher 60% than them. The light can be used efficiently. It is hining
intensively avoid the light pollution. And it can enhance the green environmental protection. The source of light don't have any poisonous gas, including lead and Hg. There are no ultraviolet radiation or infrared radiation.
3.Effieient distribution for two times: Under the same power, it can be made the illuminance lifting over 30%.
4.Installing conveniently and reliably.
5.Fine control of heat dissipation: As opposed to environment temperature, its temperature is not more than 25℃.
6.Even light color: Without any lens or dropping the brightness, make sure it has no aperture and the light color is Even.
7.Low maintenance cost: As opposed to the traditional explosion-proof lamp, this kind of lamp with LED has low maintenance
cost. After the comparison, you can recover all the cost during two years.
8.Wide voltage range: iuput 85V~265VAC or 40V~20V DC. Starting fast can restrain the temperature being low. Which would
make it starting hard.
9.Wide scope: This series lamps can be relied on the solar energy and wind energy to use. It can form a group for green
energy-saving illumination. Generally, the voltage can depand on the users' demands. You can choose 12/24V DC or 110/220V AC.
10.Wide range for shining, no glare: LED with great power use the radiant angle over 120°. It can vanish the glare, and
safety of illumination.
11.Fine color rendering: Color rendering index can reach over 80CRI, which can recover the color better and improve the
resolution.
12.Low loss and high efficiency: The lighting efficiency can reach over 85%. And the power factor is more than 0.95.

主要技术参数 Main technical parameters

额定电压 Rated Voltage	额定功率 Rated Power	防护等级 Degree of protection	光源种类 Luminaries	防爆标志 Ex-mark	防腐等级 Eroion-proof -class	电缆外径 Cable's outer dia.(mm)	进线口螺纹 Inlet thread (G")
AC220V DC36V	20W,30W 40W,50W 60W,80W, 100W	IP65	LED	DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)	WF1	φ10~φ14	3/4"

外形及安装举例 Outline and mounting example

安装配件表 Installation accessories and spare parts

序号 No.	名称 Description	序号 No.	名称 Description
1 2 3 4 5 6 7 8	灯具Lamp U型管夹 U-tube clip 管接头 Fittings 吊杆 Boom 30°弯杆 30°bend-rod type 90°弯杆 90°bend-rod type 吊灯盒Lighting box 防爆整流器 Explosion-proof ballast	9 10 11 12 13 14 15 16	链条Chain cc型索具螺旋扣cc-type rigging screw 吊钩Hook 防爆三通接线盒Explosion-proof terminal box links 平台灯杆Platform Pole 平台弯杆 Platform bend-rod type 活接头 Union 底板 Bottom board
