BYY-F系列粉尘防爆标志灯(DIP)

详细信息

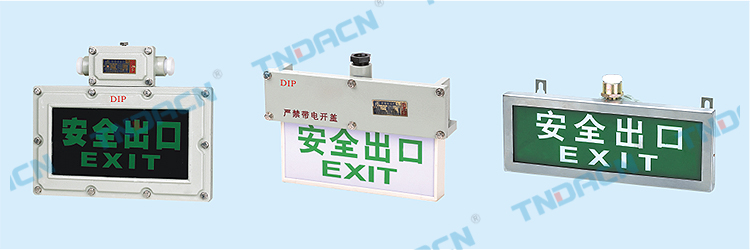

BYY-F系列粉尘防爆标志灯(DIP)
BYY-F type dust explosion-proof marking lamp (DIP)
香港最快现场直播结果

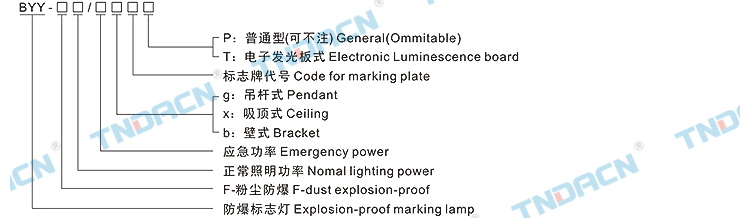

型号含义 Model implication
香港最快现场直播结果
适用范围 Applications
1.20区、21区、22区危险场所;
2.可燃性粉尘环境;
3.温度组别:T1~T4/T5/T6;
4.应用于石油、化工、航天、军工等场所。



1.Hazardous:division zone 20,21,&22;
2.Flammable dust atmospheres;
3.Temperature class:T1~T4/T5/T6;
4.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.



产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.采用高亮度发光板,具有低功耗,长帮寿命,免维护等特点;
3.内装免维护镍氢电池组,正常自动充电,事故或停电时自动点亮指示工作;
4.诱导指示标志由用户自由选择:
5.钢管或电缆布线.
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder
adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Inducing signals can be selected by users;
3.LED lighting diode, is in low consumption, the life can be up to 1000 hours long emergency time and it is non-maintenance;
4.Built-in normal condition and auto -lighting while accident happened or power tic ally in normal condition and auto-lighting while accident happened or power is failure conditions;
5.Wiring with steel tube of cable.

主要技术参数 Main technical parameters
电压(V)Voltage 光源 Luminaries 功率(W) Power 应急时间
emergency
lamp(min)
正常
Normal
应急
Emergency


正常/应急
normal/ emergency
正常
normal
应急
emergency
220 DC3.6 发光板
light board
3 3 90



防爆标志
Ex-mark
进线口螺纹
Inlet thread (G")
电缆外径
Cable outer dia.(mm)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标) 3/4" φ10~φ14

香港最快现场直播结果

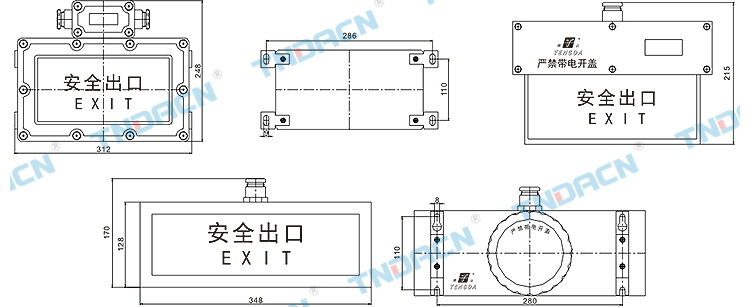

外形及安装尺寸 Outline & installation dimensions

香港最快现场直播结果
