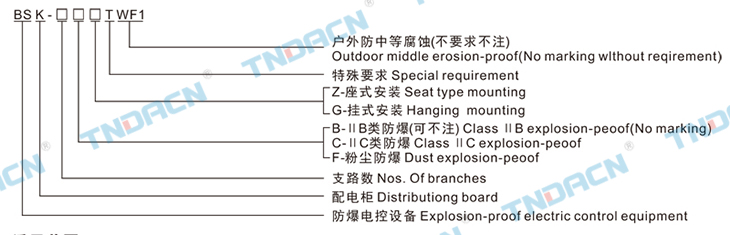

型号含义 Model implication

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境；
3.户内、户外(IP65、IP66*)；
4.温度组别：T1~T4/T5/T6；
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: class ⅡA ⅡB ⅡC or inflammable
dust environment;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

产品特点 Features

1.外壳采用优质钢板焊接成型，内装各种防爆电器或各种防爆电器组合；
例：防爆动力(照明)配电箱、防爆电磁起动器、防爆动力检修箱、防爆检修电源插座箱等防爆电器；
2.操作方式可根据要求制成面板上直接操作或开门后操作等形式；
3.可实现对电路中的各种参数进行计量和检测，通过内装各种防爆电表或各种二次仪表来实现；
4.可满足大电流的防爆(电磁起动)配电装置(降压)；
5.可实现两路或多路电源进线进行电路的自动或手动切换；
6.根据用户提供的电气原理图及主要技术参数选定相应是防爆电器组合，确定配电柜的外形尺寸，满足用户现场的需要。

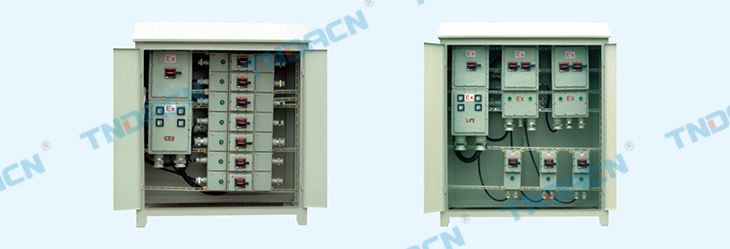

1.The enclosure is welded by excellent steel plate, it is built-in many kinds of explosion-proof apparatys or their combination;eg: explosion-proof power (illumination) distribution box, explosion-proof electromagnetic starter, explosion-proof poertmaintaining box, explosion-proof power maintaining socket box, etc;
2.The operating ways can be on panel direct or inside operationaccording to the detail request;
3.Can realize monitoring and measurement for the various parameters in circuit, pressure and temperature can be realized bybuilding in various explosion-proof meters or secondary meters;
4.It can satisfy explosion-proof distribution set (electromagnetic starer) with heavy current;
5.Two or multi-circuits entry can be converted, by hand or automatically;
6.According to the electric scheme and main technical parameters offered by user, select explosion-proof electrical equipments and,decide the outline dimensions of distribution board, to satisfy user's locale requirement.
