详细信息

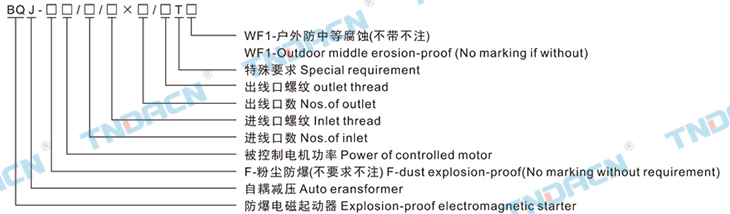

型号含义 Model implication
适用范围 Applications
1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP54);
4.温度组别:T1~T4;
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: class ⅡA ⅡB or inflammable
dust environment;
3.Indoor or outdoor(IP54);
4.Temperature class:T1~T4;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
产品特点 Features
1.钢板焊接,表面喷塑;
2.内装自耦变压器、交流接触器、热继电器、断路器、 时
间继电器、电流互感器、电压表、电流表、转换开关及
指示灯等元件;
3.产品具有过载、短路、欠压、断相等保护功能;
4.可根据用户要求特制;
5.钢管或电缆布线。
1.Welded with steel plate, surface is sprayed with plastic;
2.Built-in auto-transfomer, AC contactor, thermal relay, circuit-breaker, time relay, current instrument transformer, voltmeter,ammeter, transfer switch and indicator lamp;
3.With overload, short circuit, low voltage, short phase protectionfunctions;
4.It can be made on requests;T1~T4/T6;
5.Wiring with steel tube or cable.
主要技术参数 Main technical parameters
电器原理图 Electric scheme
外形尺寸 Outline dimensions
