详细信息

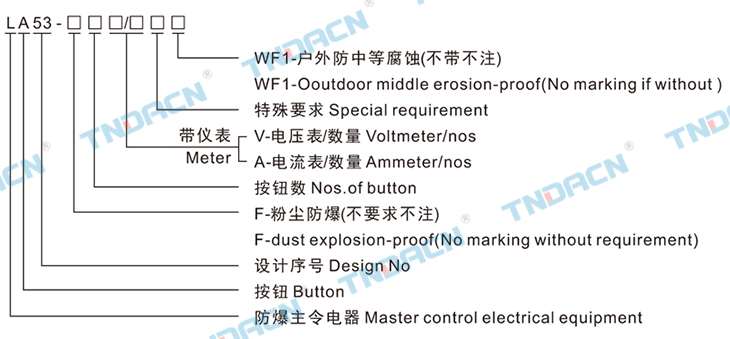

型号含义 Model implication
适用范围 Applications
1.1区、2区危险场所或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境；
3.户内、户外(IP65、IP66*)；
4.温度组别：T1~T6
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammable dust environment;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T6;
5.Widely using in the fields of oil, chemical industry, spaceflight, war ind-ustru and so on.
产品特点 Features
1.壳体采用高强度合金铝一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、
防爆性能优良，表面塑粉附着力强具有良好的防腐能力，表面光洁，美观大方；
2.内可装防爆型按钮和增安型电流表；
3.带电流表的按钮可监视设备运行状态;
4.钢管或电缆布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Built-in flameproof button and increased safety ammeter;
3.Button with ammeter could supervise running state of facilities;
4.Wiring with steel tube or cable.
主要技术参数 Main technical parameters
*. 要求IP66，需注明。 IP66 Requirements must be marked

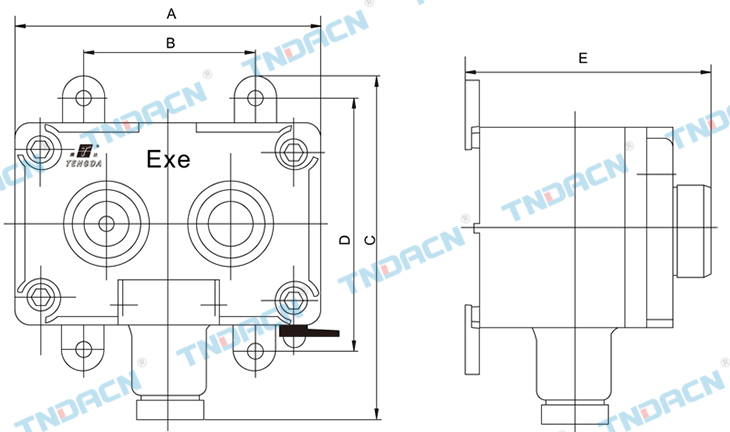

外形及安装尺寸 Outline & installation dimensions
