详细信息

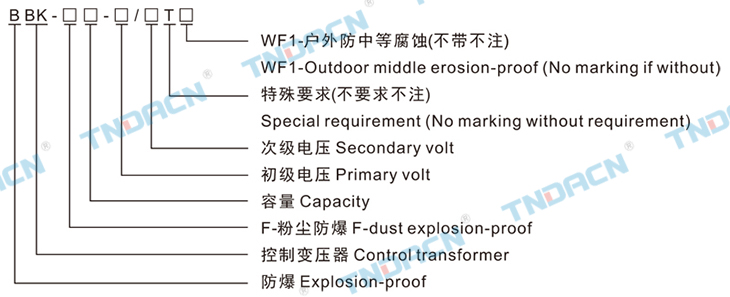

型号含义 Model implication
适用范围 Applications
1.1区、2区或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC类爆炸性气体环境或或燃性粉尘环境;
3.户内、户外(IP54,IP65*)；
4.温度组别：T1~T4；
5.应用于石油、化工、航天、军工等场所。
适用范围 Applications
1.Hazardous:division 1&2 or zone 20、21、22；
2.Explosive gas or steam atmosphere: class ⅡA,ⅡB,ⅡCor flammable dust atmospheres;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class: T1~T4;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
产品特点 Features
1.壳体采用高强度合金铝一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良，表面塑粉附着力强具有良好的防腐能力，表面光洁，美观大方；
2.接线腔和主腔分别独立；
3.钢管或电缆布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Terminal chamber is separated from main chamber.
3.Wiring with steel tube or cable.
主要技术参数 Main technical parameters

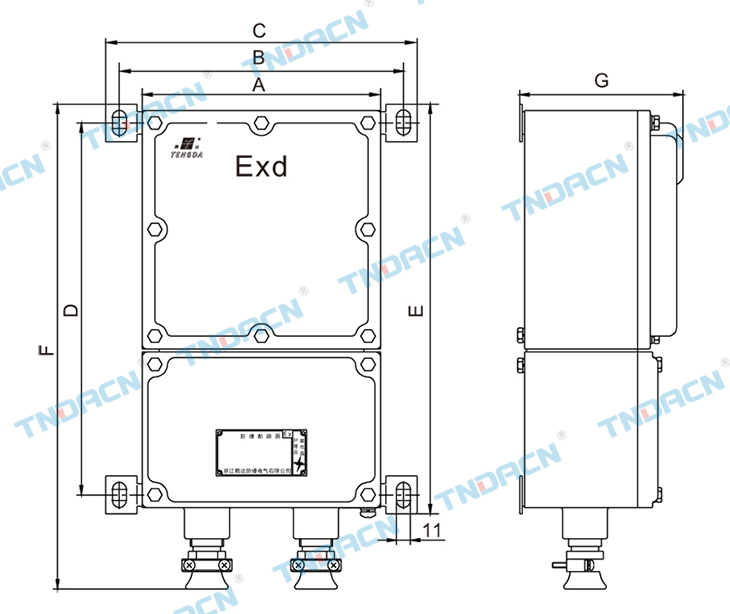

外形及安装尺寸 Outline & installation dimensions
