详细信息

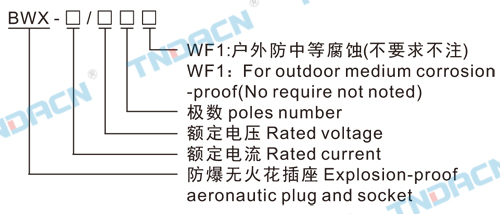

型号含义 Model implication
适用范围 Applications
1.1区、2区或20区、21区、22区危险场所; 2.ⅡA、ⅡB、ⅡC类爆炸性气体环境或或燃性粉尘环境; 3.户内、户外(IP54,IP65*) 4.温度组别:T1~T4 5.应用于石油、化工、航天、军工等场所。 1.Hazardous:division 1&2 or zone 20、21、22; 2.Explosive gas or steam atmosphere: class ⅡA,ⅡB,ⅡC or flammable dust atmospheres; 3.Indoor or outdoor(IP54,IP65*) 4.Temperature class: T1~T4 5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
产品特点 Features
1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方; 2.接触件表面镀银和导线端接线方式为压接; 3.具有插拔快捷,接线方便,电接触可靠,良好的绝缘性,防水防尘,使用寿命长等优点; 4.钢管或电缆布线。 1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance; 2.Contact with the surface of silver and lead wiring for the crimp terminal. 3.With the plug fast, easy wiring, electrical contacts, reliable, and absolutely good Geography, waterproof and dustproof,and long life. 4.Wiring with steel tube or cable.
主要技术参数 Main technical parameters

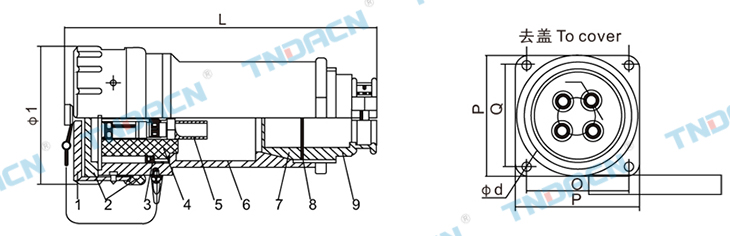

外形及安装尺寸 Outline&installation dimensions
