详细信息

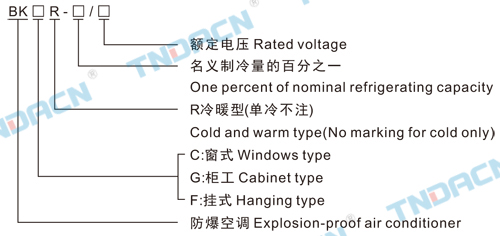

型号含义 Model implication
适用范围 Applications
1.1区、2区或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC类爆炸性气体环境；
3.本产品适用于石油化工、冶金、医药、轻工、纺织、食品、生物工程、航天航空工程以及军工等爆炸性环境中，有温度控制要求的场所；
4.环境温度：-5℃~+43℃；
5.温度组别：T1~T4；
6.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1&2 or zone 20、21、22;
2.Explosive gas atmosphere:class ⅡA,ⅡB,ⅡC
3.It's used in petroleum, metallurgy, medicine, light industry, textile, foodstuff and biology, aviation project and militaryindustries, in exp-losive environment with temperature with temperature control requirements;
4.Temperature: -5~+43℃
5.Temperature class:T1~T4
6.Widely using in the fields of oil, chemical industry, spaceflight, war ind-ustru and so on.
产品特点 Features

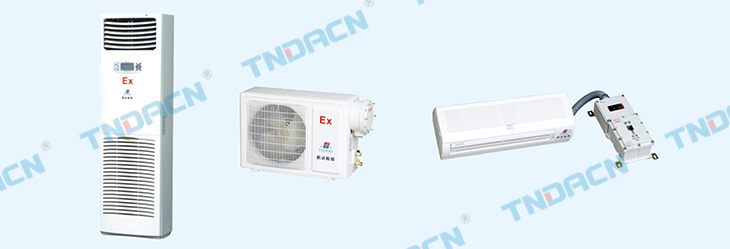

1.防爆空调根据结构形式分为：分体挂式空调、分体柜式空调和窗式空调；按功能分为：单冷型和冷暖型；
2.防爆空调一般为手动控制，但可按用户要求设计为遥控；
3.防爆空调设备采用品牌空调，经特殊工艺处理制造方法进行防爆处理；
4.可对用户现场的大型冷水或风冷机组、冷冻机组、中央空调设备等进行现场防爆处理，根据现场情况制定方案并提交用户
5.出厂产品均附有整套技术资料，便于安装，使用和维护。
1.According to sturcture, it can be divided into three types: hanging types, tank type window type ;according to function,two type: coldtype and cold & warm type;
2.In general,it is manual control,but it can be designed asremote control on request;
3.Explosion-proof air conditioner is madeof well-known brand air conditioner with explosion-proof treatment by specialmethod;
4.We can do explosion-proof treatment for large water-colding or wind-colding machine group, freezing machine groupand centre air conditioner facitities on locale.make scheme according to locale conditions for customer`s examination andverity, and apply for explosion-proof function inspectionfrom explosion-proof inspectioncentre;
5.The whole set of technical documentation is attached with this product when it is packed, which is convenient for installation,operation and maintenance.
主要技术参数 Main technical parameters
