详细信息

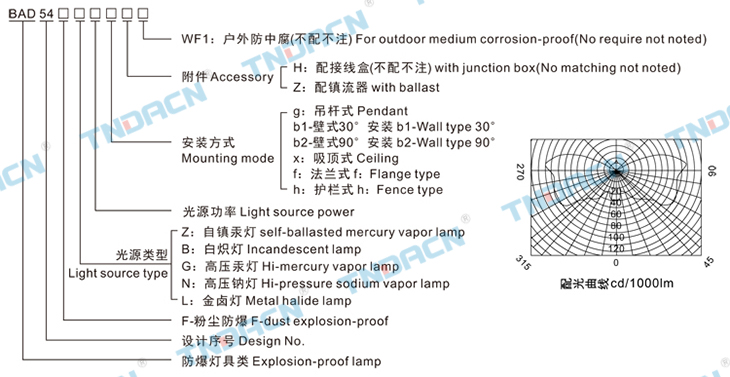

型号含义 Model implication
适用范围 Applications
1.1区、2区危险场所或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境；
3.户内、户外(IP54、IP65*)；
4.温度组别：T1~T4/T5/T6；
5.可配装白炽灯、汞灯、高压钠灯、金卤灯；
6.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Equipped with incandescent lamp, mercury vapor lamp,high-pressure sodium vapor lamp, metal halide lamp.
6.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.
产品特点 Features
1.壳体采用高强度合金铝一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良，表面塑粉附着力强具有良好的防腐能力，表面光洁，美观大方；
2.灯罩采用高硼硅钢化玻璃，透光率高，可承受高强冲击；
3.采用密封结构，保证了较强的防水、防尘能力；
4.采用活节螺栓紧固，能快速向上开启，便于维修。
5.钢管布线
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Lamp housing is made of high borosilieate toughened glass with high transmittance, and it can withstand strong impct.
3.It has sealing structure, which has ensured the great functions of water proof and dust proof.
4.Suspension type thumb nut is used for fastening so that it canbe quickly opened up upwards and is convenient for maintenance.
5.Conduit wiring.
主要技术参数 Main technical parameters
配用光源 Supplied with light source

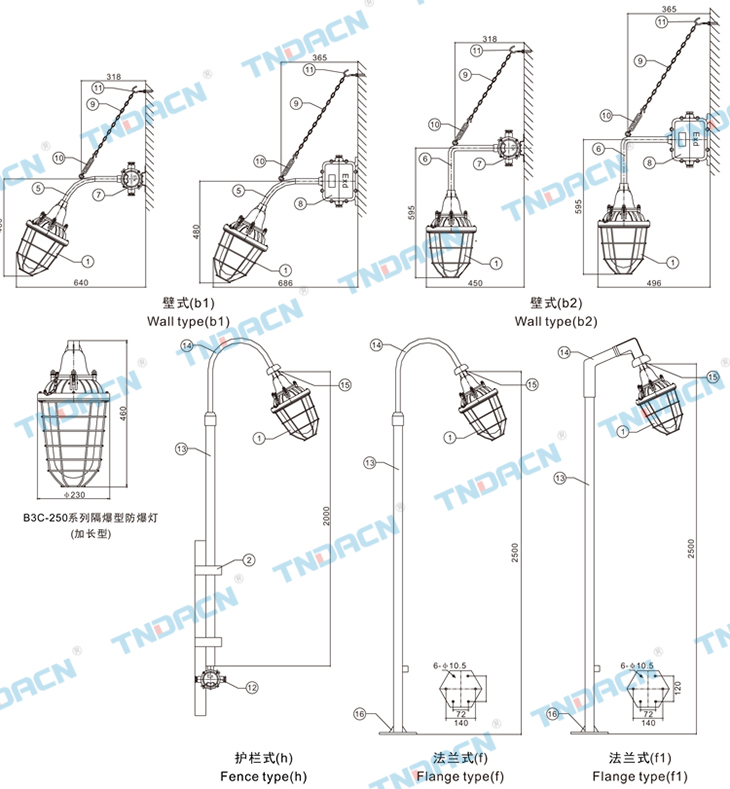

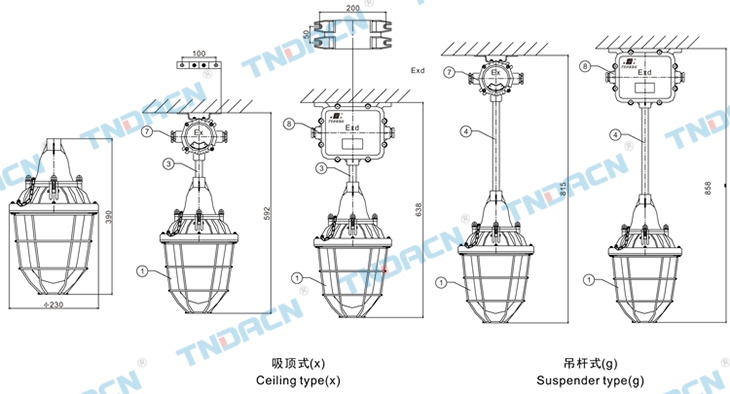

外形及安装举例 Outline and mounting example
安装配件表 Installation accessories and spare parts
