详细信息

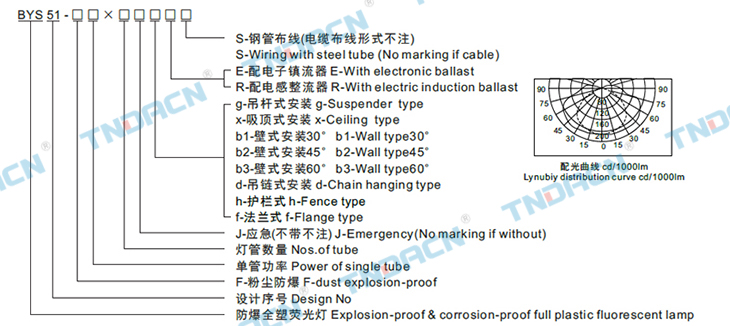

型号含义 Modelimplication
适用范围 Applications
产品特点 Features
1.外壳采用高强度的SMC模压成型，灯罩采用透光性能好、耐强冲击的聚碳酸脂注塑成型；
2.外壳采用密封结构，具有了良好的防水、防尘防强腐蚀等性能；
3.内装电子镇流器为我公司特制的防爆镇流器，具有短路和开路保护性能，针对灯管的老化效应和漏气现象预防电路，使灯具能正常工作，且高效节能COSф≥0.98，具有宽电压输入，在电压170～250V AC范围内，均能保持恒功率输出；
4.电子镇流器配用灯管为普通T8灯管，降低了用户的维修费用；
5.配电感镇流器采用单脚快速瞬时启动灯光；
6.可根据用户要求配置应急装置，当外界断电时，灯具自动切换到应急照明状态；
7.灯具内装防爆开关，配置开盖断电链锁装置；
8.钢管或电缆布线(钢管布线时请注明。
1.The enclosure is moulded by the high strength SMC. Lamp housing is made of polycarbonater, which has fine light transmittance and impact resistance properties.
2.It has sealing structure, which has ensured the great functions of water proof and dust proof.
3.Inner electronic ballast is our compny's special explosion-proof ballast, and it has protection functions of short circuit and oen circuit. For the phenomenons of tubes' aging effect and air leakage, it should have standby circuit in order to keep it working. The high energy saving is COSф ≥0.98,and it has the wide range of input voltage. It can keep contant power output within170V~250VAC.
4.In order to reduce the cost of customer' s maintenance, we use the normal tube of T8 as the tube of electronic ballast.
5.The lamp, with electric induction ballast, is adopted the single pin to turn on instantly.
6.We can conform the customers' requirements to add an emergency device. If the power is cut off, it will be turned to emergency lighting automatically.
7. There is an explosion-proof switch in the interior, and it should be added interlock device for opening the cover, when the power is cut off.
8.Wiring with steel tube or cable.(Please specify wiring with steel tube.
主要技术参数 Main technical parameters
|
|
*带应急时参数 Parameter for taking emergency

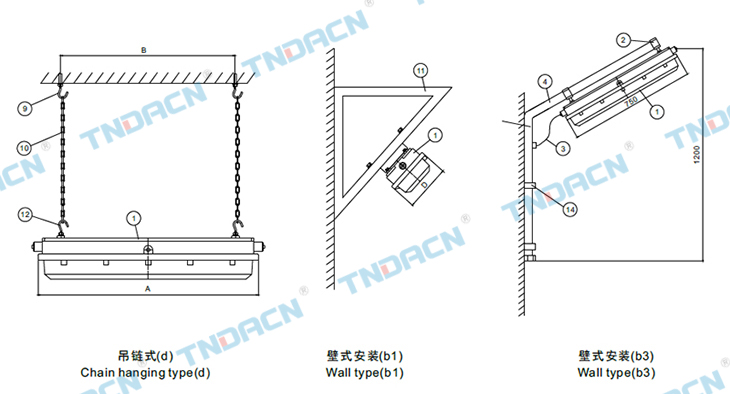

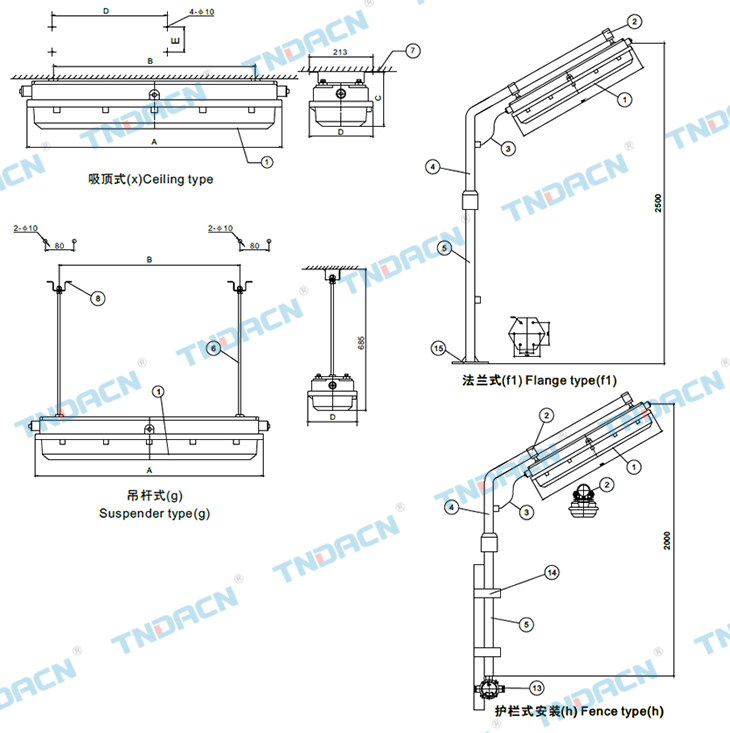

外形及安装尺寸 Outline&installation dimension
安装配件表 Installation accessories and spare parts
