详细信息

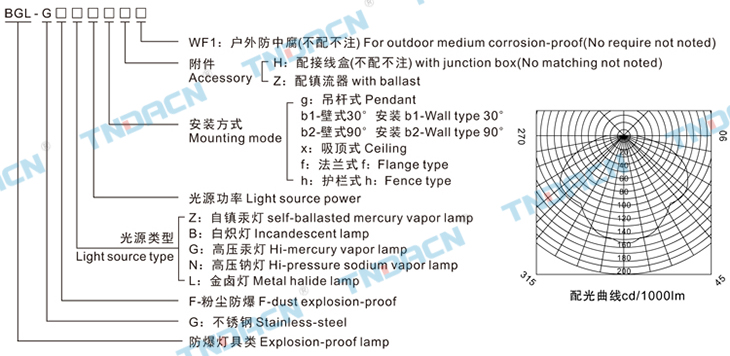

型号含义 Model implication
适用范围 Applications
1.1区、2区危险场所或20区、21区、22区危险场所; 2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境; 3.户内、户外(IP54、IP65*); 4.温度组别:T1~T4/T5/T6; 5.可配装白炽灯、汞灯、高压钠灯、金卤灯; 6.注:当用作增安型时,不配钠灯; 7.应用于石油、化工、航天、军工等场所。 1.Hazardous:division 1 &2,or 20,21,&22; 2.Explosive gas atmosphers: classⅡA ⅡB ⅡC orinflammable dust environment; 3.Indoor or outdoor(IP54,IP65*); 4.Temperature class:T1~T4/T5/T6; 5.Equipped with incandescent lamp, mercury vapor lamp,high-pressure sodium vapor lamp, metal halide lamp. 6.Note:When the time for increased safety, deserve sodium. 7.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.
产品特点 Features
1.外壳采用不锈钢拉伸成型,外形美观。 2.采用扣合式快速开启结构,更换灯泡方便,密封可靠。具有较强的防水、防尘、防爆功能。 3.灯罩采用高硼硅钢化玻璃,透光率高,可承受高强冲击; 4.采用密封结构,保证了较强的防水、防尘能力; 5.钢管布线。 1.The shell stretch-formed by stainless steel with aesthetic appearance. 2.Use buckle type fist opening up structure, which is convenient for changing bulb, sealed reliably and having the functions ofstrong water-proof, dust-proof, corrosion-proof. 3.Lamp housing is made of high borosilieate toughened glass with high transmittance, and it can withstand strong impct. 4.It has sealing structure, which has ensured the great functions of water proof and dust proof. 5.Conduit wiring.
主要技术参数 Main technical parameters
配用光源 Supplied with light source

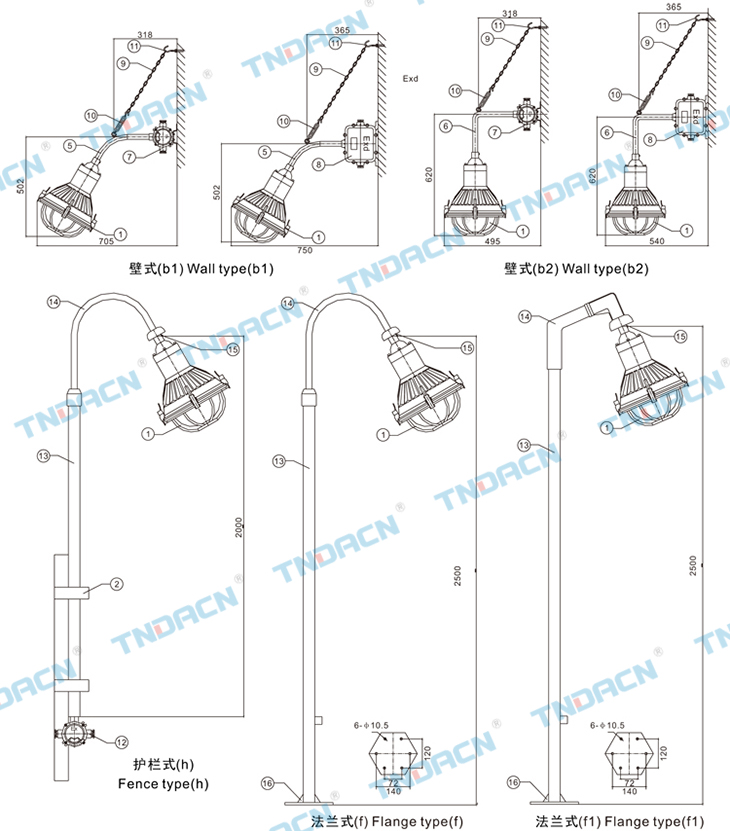

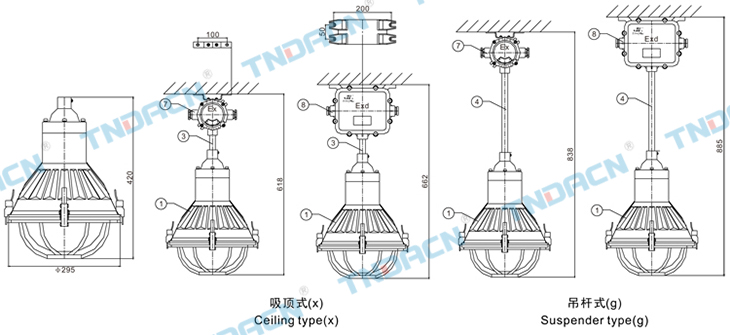

外形及安装尺寸 Outline&installation dimension
安装配件表 Installation accessories and spare parts
