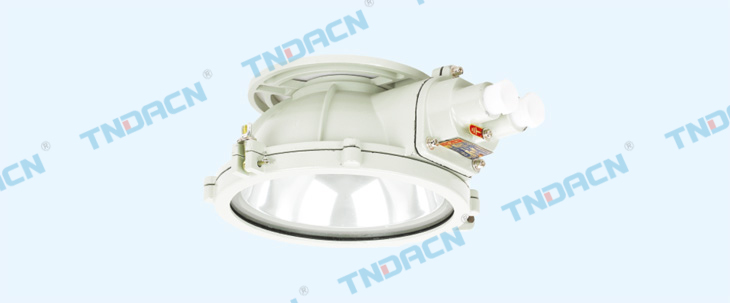

BXL-100 系列防爆吸顶灯(ⅡB、ⅡC、e)

详细信息

型号含义 Model implication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.温度组别:T1~T4/T5/T6;
4.可配装白炽灯;
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC orinflammable dust environment;
3.Temperature class:T1~T4/T5/T6;
4.Suitable for incandescent lamp;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.采用螺栓固定,快速开盖,更换光源方便;
3.电缆布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Fixed the active bolt tightly, open the cover fast to make replace the lamp conveniently.
3.Two lead-in devices installed on the shell, suitable for cable-wiring.

主要技术参数 Main technical parameters

光源类型
Lamp type
额定电压(V)
Rated voltage
额定功率(W)
Rated power
电缆外径(φ,mm)
Cable's outer
diameter
进线口螺纹(G")
Inlet's thread
灯座代号
Lamp socket
白炽灯
Incandescent lamp
220 100 10~14 3/4 E27

配用光源 Supplied with light source

防爆标志
Ex-mark
防护等级
Protection
grade
ExeⅡT2等效于 Ⅱ2G ExeⅡT2(欧标)
ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)
IP65

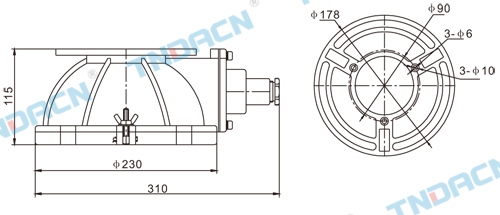

外形尺寸 Outline dimension
