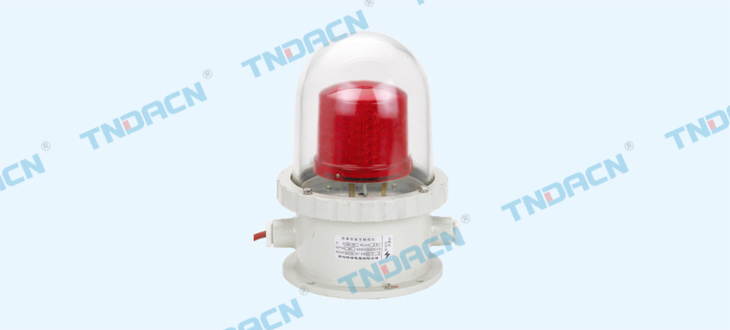

CBZ系列防爆航空障碍灯(ⅡB、ⅡC)

详细信息

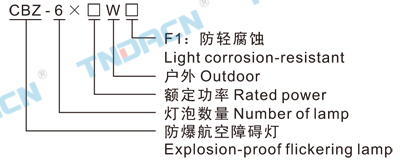

型号含义 Model implication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.温度组别:T1~T4/T5/T6;
4.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC orinflammable dust environment;
3.Temperature class:T1~T4/T5/T6;
4.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.采用高亮LED 为光源,具有低功耗,长寿命,免维护等特点;
3.采用自动光控开关控制器控制,可靠性强,夜晚和多雾环境下自动开启,白天自动关闭;
4.如需要多台障碍灯联机工作时,公需交同步信号线连接一
起,即可实现同步闪烁,也可根据用户要求,提供集中控制
器;
5.钢管或电缆布线.
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2. It adopts advanced long life light source;
3.Automatic optic control switch can turn on when at night or much fog condition, it turns off at daylight;
4.It converts bulb automatically, inspection fault and alarm automatically, when the sixth bulb works, the carrier wave systemwill flick and send out sound&optic alarm signal to prompt change new bulb;
5.Wiring with steel tube of cable.

主要技术参数 Main technical parameters

防爆标志
Ex-mark
防护等级
Degree of
protection
电缆外径
Cable outer
dia.(mm)
进线口螺纹
Inlet thread
(G")
光源
Luminaries
额定电压
Rated
Voltage(V)
防爆标志
Ex-mark
ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(欧标)
ExdⅡCT6等效于 Ⅱ2G ExdⅡCT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)
IP65 φ10~φ14 3/4 白炽灯
Incandescent
Lamp
AC220 100W
LED 灯
LED Lamp
24W
