详细信息

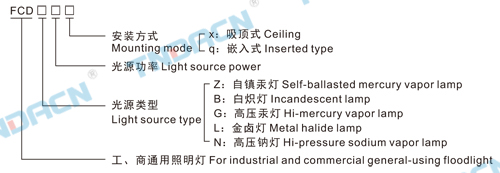

型号含义 Modelim plication
适用范围 Applications
1环境温度-25°至55°。
2.安装高度不超过海拔2000m。
3.多水、多尘、潮湿等环境，防弱酸、弱碱腐蚀。
4.广泛应用于食品、制药、车站、加油站、商场、大型厅堂等工厂企业及商品场所。
5.根据配置的镇流器，必须选择匹配的光源，用户电源电压波动范围必须满足国家标准要求。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of weak acid, weak alkali and the environment of more water, more dust and humidity.
4.They are widely used in the lines of petroleum, chemistry, hell, food. Medicine, industrialand commercial concourse andso on.
5.According to suited ballast, they must choose illumination accordingly. The user's powervoltage fluctuant range must accordto the national standard.

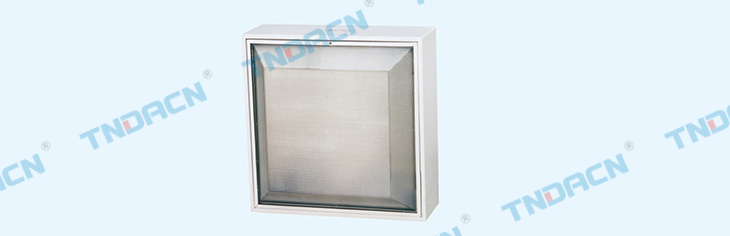

结构特点 The features of structure
1.外壳采用优质钢板折弯成形，可按用户要求采用不锈钢板制作。
2.照明罩采用棱镜式聚碳酸酯制成，具有光线柔和、低眩光等优点。
3.一体式结构、镇流器、触发器、灯泡装于一体(灯泡用户自配)。
4.本产品表面高压静电喷塑处理、抗弱酸、弱碱腐蚀，防水、防尘、防腐等级为F1、防护等级IP65。
5.密封件采用硅橡胶、耐油、耐酸、耐碱、耐高温。
1.The shell is constructed of bended steel plate, which can be made by stailess steelaccording to customer's demand.
2.The transparent enclosure is made of polycarbonate of prismtype with the character of softlight and low dizziness.
3.One-body structure, ballast, trigger and bulb are installed together(bulb is selected bycustomer).
4.The products surface is static-sprayed plastic high-pressionly, the products can withstandthe corrosion of weak acid, weak
alkali and have the function of water-proof of dust-proof, anti-corrosion class is F1, theprotection class reaches IP65.
5.The sealers adopt silicon rubber, which can withstand oil, acid, alkali and high temperature.
壳体分类 Shell's classification
| 壳体类型 Kind of shell |
A×A |
B×B |
C×C |
G×G |
D×D |
E |
F |
功率(W) Power |
| Ⅰ |
390×390 |
360×360 |
300×300 |
310×310 |
440×440 |
160 |
220 |
Z125,Z160,N110,
G125,L100 |
| Ⅱ |
580×580 |
550×550 |
400×400 |
490×490 |
630×630 |
200 |
280 |
N150,G175,L175,
N250,G250,L250,
L400,G400,
L400,Z250,Z450 |
主要技术参数 Main technical parameters
光源类型
Lamp type |
额定电压(V)
Rated voltage |
额定功率(W)
Rated power |
防护等级
Protection
grade |
防腐等级
Corrosion-proof
grade |
灯座代号
Lamp socket |
高压汞灯
Hi-mercury
vapor lamp |
AC220V |
125,175,250,400 |
IP65 |
F2 |
E27
E40 |
金卤灯
Metal halide lamp |
100,175,250,400 |
高压钠灯
Hi-pressure sodium
vapor lamp |
110,150,250,400 |
自镇汞灯
self-ballasted
mercury vapor lamp |
125,160,250,400 |

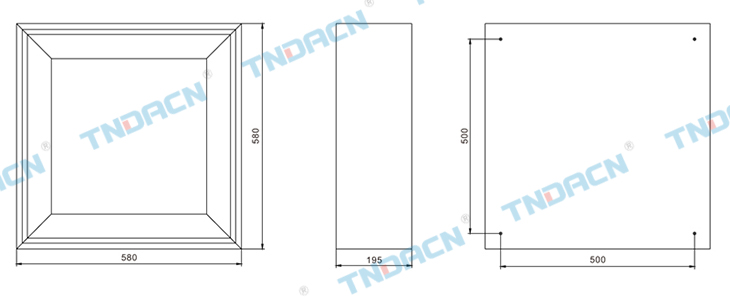

外形及安装举例 Outline and mounting example
