详细信息
型号含义 Modelim plication
适用范围 Applications
1.环境温度-25°至55°。
2.安装高度不超过海拔2000m。
3.多水、多尘、潮湿等环境，防弱酸、弱碱腐蚀。
4.广泛应用于食品、制药、车站、加油站、商场、大型厅堂等工厂企业及商品场所。
5.根据配置的镇流器，必须选择匹配的光源，用户电源电压波动范围必须满足国家标准要求。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of weak acid, weak alkali and the environment of more water, more dust and humidity.
4.They are widely used in the lines of petroleum, chemistry, hell, food. Medicine, industrial and commercial concourse andso on.
5.According to suited ballast, they must choose illumination accordingly. The user's power voltage fluctuant range must accordto the national standard.
产品特点 Features

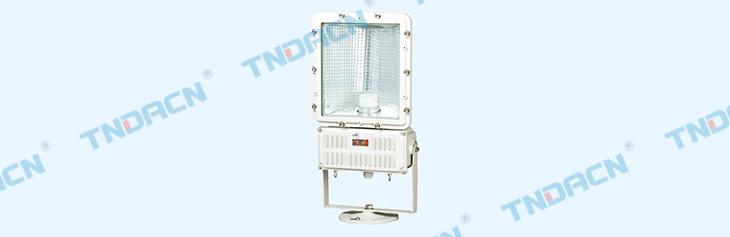

1.方形铝合金外壳，采用高强度铝合金一次性压铸成型，表面高速抛丸高压静电喷塑，外形美观且防腐性能好；
2.钢化玻璃,透光性好，不锈钢外露坚固件；
3.灯具与镇流器等附件为一体式设计，光源腔与镇流器腔分别独立，采用侧面开盖，快速更换灯泡，便于安装维修；
4.反光罩经过专业二次配光设计，并得到实际应用验证。使用桔纹漫反射板可使光线柔和，照射角幅度大；可加装补偿电容，补偿后CosФ≥0.8；
5.电缆布线。
1.The quadrate enclosure is made of aluminum alloy. It is moulded by the high strength aluminum alloy for one time, whichhas high strength, fine explosion-proof functions. Its exterior has sprayed with plastic by high pressure static after shotblasting at high speed.
2.Lamp housing is made of high borosilicate glass with great transmittance. Outer fasteners are made of stainless steel.
3.Lamp and ballast are designed holistically. However, the light cavity and ballast are independent. We should open thecover in flank to replace the bulb immediately. And it's convenient to install and maintain.
4.The reflect should get special software design of distribution for two times, and it can have the confirmation of acgtualtest. Using orange-peel diffuse plate to make the light soft and make the irradiation range large. It can be also added thecompensation capacitor CosФ≥0.8.
5 Wiring with cables.
主要技术参数 Main technical parameters
1.执行标准：GB7000.1-2007
2.安装形式：吸顶式(X)、支架式(B)、路灯式(详见P108);
3.配光曲线：见后图。
1.Accord with the standard for GB7001.1-2007;
2.Installation: ceiling type(X), bracket type(G),type of street lamp(detailedon page 108).
3.Luminous distribution curve can be seen from next page.
外形及安装尺寸 Outline & installation dimensions
