详细信息

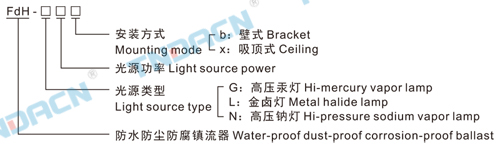

型号含义 Modelim plication
适用范围 Applications
1.环境温度-25°至55°。
2.安装高度不超过海拔2000m。
3.强酸、强碱腐蚀，多水、多尘、潮湿环境。
4.必须选择匹配的光源，用户电源电压波动范围必须满足国家标准要求。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withat and the corrosion of strong acid, strong alkali, and the environment of , more water, more dust and humidity.
4.They must choose illumination accordingly, the user's power voltage fluctant range must accord to the national standard.
产品特点 Features
1.镇流器壳体按功率125W(含125W)以下和125W至400W分两种尺寸，均采用铝合金或不锈钢材料焊接而成，结构轻巧，外
形美观。
2.本产品抗强酸强碱盐腐蚀，防水、防尘、防腐等级为F2，防护等级为IP65。
3.所有外露紧固件均采用不锈钢，密封件采用硅橡胶，耐油、耐酸、耐碱、耐高温。
4.与单盏灯具配套使用，兼做接线、分线箱。
5.内装镇流器技术参数同飞利浦、亚明，强烈建议用户配置飞利浦、亚明光源。
6.可按用户要求加装功率补偿器，补偿后功率因数可达0.9以上。
1.The housings of ballast according to the two sizes of power up to 125W~400W which are made by aluminum or adiptingstainless steel matcrial, with light structure and beautiful appearance.
2.The products can withstand the corrosion of strong acid, strong alkali, salt. And have the function of waterproof andanti-corrosion class is F2, the protection class reaches IP65.
3.All the leakage fixers adopt stainless steel, the sealers adopt silicon rubber, which can withstand oil, acid alkalis, and hightemperature.
4.They are used with single lamp appliance, meanwhile, they are used as connecting box.
5.The technical parameter of inner ballast as compared to Philips and Yaming, we strongly users confesting the illuminantof Philips and Yaming.
6.They can be plug-installed power compensator, the power factor can be more than 0.9 after expiation.
主要技术参数 Main technical parameters

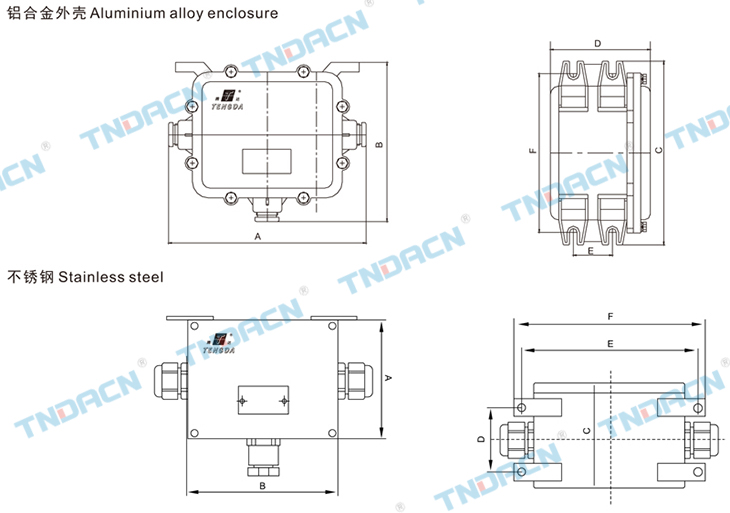

外形及安装尺寸 Outline & installation dimensions
材质：铝合金材质 Material: Aluminium alloy
| A |
B |
C |
D |
E |
F |
备注 Remark |
| 248 |
200 |
228 |
124 |
50 |
200 |
L70,L100,N70,N100,N110,G80,G125,
L150,L175,G175,N150 |
| 295 |
210 |
276 |
115 |
52 |
248 |
L250,L400,G250,G400,N250,N400 |
不锈钢外壳 Stainless steel enclosure
| A |
B |
C |
D |
E |
F |
备注 Remark |
| 152 |
170 |
122 |
70 |
234 |
211 |
G80,G125,G250,L70,L110L
175,L250,N70,N100,N110,N1510 |
| 160 |
210 |
122 |
70 |
234 |
251 |
L400,G400,N250,N400 |
