详细信息
型号含义 Modelim plication
适用范围 Applications
1.环境温度-25°至55°。
2.安装高度不超过海拔2000m。
3.多水、多尘、潮湿等环境,防弱酸、弱碱腐蚀。
4.广泛应用于食品、制药、车站、加油站、商场、大型厅堂等工厂企业及商品场所。
5.根据配置的镇流器,必须选择匹配的光源,用户电源电压波动范围必须满足国家标准要求。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of weak acid, weak alkali and the environment of more water, more dust and humidity.
4.They are widely used in the lines of petroleum, chemistry, hell, food. Medicine, industrial and commercial concourse andso on.
5.According to suited ballast, they must choose illumination accordingly. The user's power voltage fluctuant range mustaccordto the national standard.
产品特点 Features
1. 壳体采用高强度铝合金一次性压铸成型,表面经高速抛丸清理后高压静电喷塑, 外壳结构紧凑合理,强度好,防爆性能
优良,表面塑粉附着力强,具有良好的防腐性能,外表整洁,美观大方;
2. 增安型外壳,模块结构可根据用户需要,随意组装,内装防爆指示灯、电流表、电压表、按钮及转换开关等;
3. 隔爆型外壳,内装指示灯、电流表、电压表、按钮、转换开关、继电器等;
4. 内装元件可根据用户要求进行排列、生产;
5. 钢管或电缆布线。
1. Enclosure is cast with high intensity aluminum alloy, surface is sprayed with plastic by high voltage static electicity, after the highly impeller cleaning. The structure of enclosure is reasonable, high-intensive and perfect-explosive and the surfaceplastic of good adhesive force is excellent in explosion-proof and appearance;
2. For increased safety enclosure, original modularization structure can be assembled freely according to user's requirements.Built-in explosion-proof indicator, ammeter, voltmeter, button and convert switch;
3. For flame-proof enclosuer, built in explosion-ploof indicator, ammeter, voltmeter, button, convert switch and relay;
4. Built-in components can be arranged and made according to user's requirements;
5. Wiring with steel tube or cable.
主要技术参数 Main technicl parameters

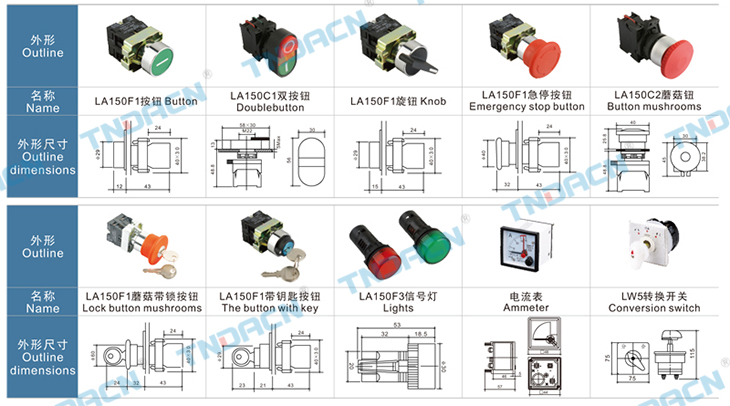

内装元件 Built-in components

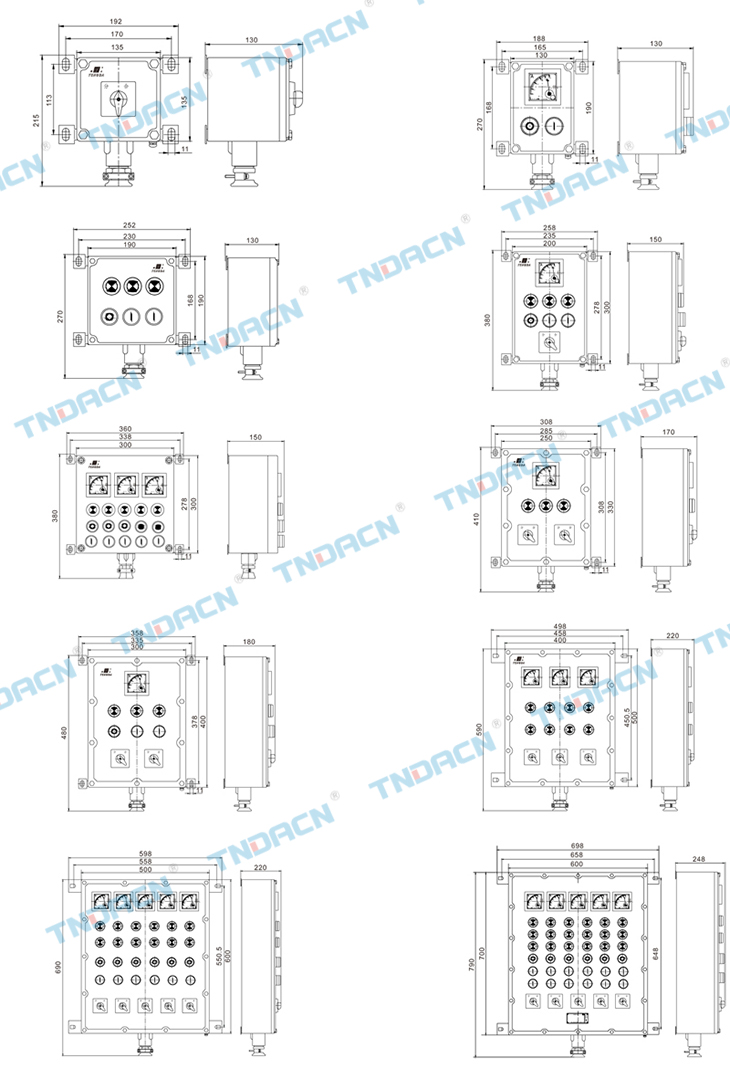

外形及安装尺寸 Outline & installation dimensions
