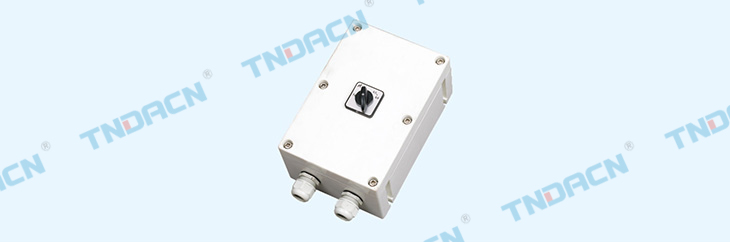

FHZ 系列防水防尘防腐转换开关

详细信息

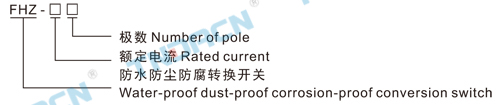

型号含义 Modelim plication

香港最快现场直播结果

适用范围 Applications

1.环境温度-25°至55°。
2.安装高度不超过海拔2000m。
3.强酸、强碱腐蚀,多水、多尘、潮湿等环境。
4.广泛用于石油、化工、仓库、食品、制药、军工等工厂企业。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of strong acid, strong alkali, and the environment of more water, more dust and humidity.
4.They are widely used in the lines of petroleum, chemistry, warehouse, food, medicine, war industry and so on.

产品特点 Features

1.外壳采用增强玻璃纤维不饱和聚酯树脂材料,模压成型,外形美观。具有抗老化、不变形、抗冲击、抗静电、耐腐蚀等
优点。
2.本系列产品抗强酸、强碱、盐、海水、氯离子腐蚀,防腐等级F2。
3.本系列产品为迷宫式防水结构,具有良好的防水、防尘性能,防护等级为IP65。
4.所有外露紧固件均采用不锈钢,密封件采用硅橡胶,耐油、耐酸、耐碱、耐高温、抗老化。
5.电缆布线。
6.可作为照明开关使用。
7.开关有多种功能可供用户选择。
1.The cases adopt strong flass-fibre, and unsaturated, ployster resin, and are moldule, with light structure and beautifulappearance.
2.They have good advantages of aging resistance, shape resistance, high impact, anti-static and anti-corrosion, etc.
3.This series product can withstand the corrosion of strong acid, strong alkali, salt, amnonia, chlorine, corrosion-proofgrade is F2.
4.This series product adopt devions-labyrinthian strctre, they have performance of water-proof and dust-proof, theprotection grade reaches IP65.
5.All the leakage fixers adopt stainless steel, sealers adopt silicon rubber, they can withstand oil, acid, high temperatureand are not easy to age.
6.It can be used as illumination switch.
7.The switch has many function which can be selected by customer.

主要技术参数 Main technical parameters

产品型号
Product type
额定电压(V)
Rated voltage
额定电流(A)
Rated current
防腐等级
Erosion-proof class
防护等级
Degree of protection
电缆外径(φ,mm)
Cable's outer
diameter
FHZ-□ AC220/380(V) 10A
25A
63A
IP65 F2

φ8-φ14
φ12-φ17
φ16-φ25

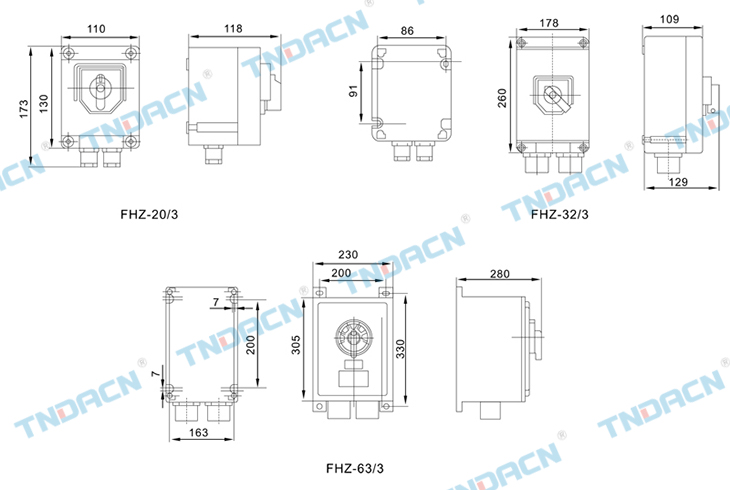

外形及安装尺寸 Outline & installation dimensions
