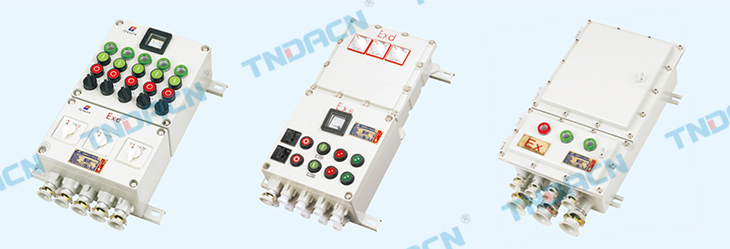

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP65、IP66*);
4.温度组别:T1~T6;
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: class ⅡA ⅡB ⅡC or inflammable
dust environment;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T6;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、
防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.增安型外壳,模块结构可根据用户需要,随意组装,内装防爆指示灯、电流表、电压表、按钮及转换开关等;
3.隔爆型外壳,内装指示灯、电流表、电压表、按钮、转换开关、继电器等;
4.内装元件可根据用户要求进行排列、生产;
5.钢管或电缆布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.For increased safety enclosure, original modularization structure can be assembled freely according to user's requirements.Built-in explosion-proof indicator, ammeter, voltmeter, button and convert switch;
3.For flame-proof enclosuer, built in explosion-ploof indicator, ammeter, voltmeter, button, convert switch and relay;
4.Built-in components can be arranged and made according to user's requirements;
5.Wiring with steel tube or cable.

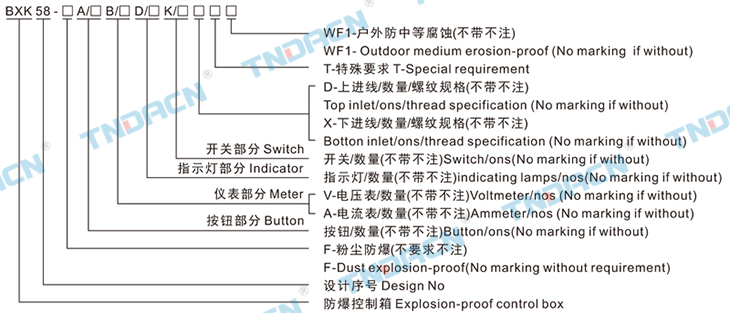

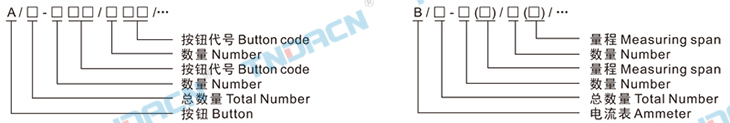

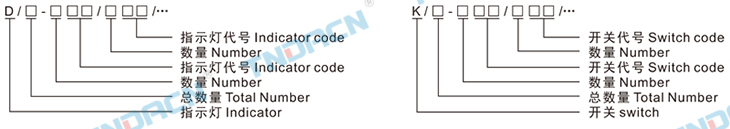

按钮部分含义 Button implication | 仪表部分含义 Meter implication |
指示灯部分含义 Indicator implication | 开关部分含义 Switch implication |
使用类别
Kind of application 额定电压
Rated voltage(V) 额定电流
Rated current(A) 进出线口螺纹/电缆外径
Inlet or outlet thread(G")/Cable outer dia.(mm) AC-3
AC-4 220
380 6,10,16 G1/2"~G2"/φ7~φ38
M16~M63/φ5~φ44
防爆标志 Ex-mark |
防腐等级 Erosion-proof-class |
防护等级 Degree of protection |
ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(欧标) ExedⅡBT6等效于 Ⅱ2G ExedⅡBT6(欧标) ExdⅡCT6等效于 Ⅱ2G ExdⅡCT6(欧标) ExedⅡCT6等效于 Ⅱ2G ExedⅡCT6(欧标) DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标) |
WF1 | IP65 IP66* |
*.要求IP66,需注明。IP66 requirements must be marked

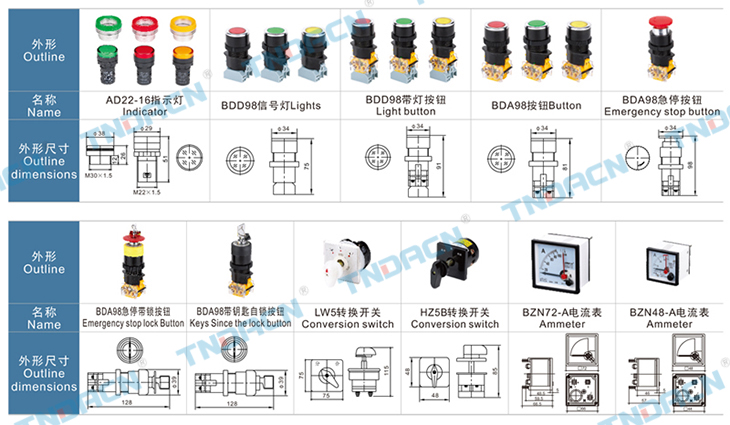

内装防爆元件 Built-in explosion-proof components

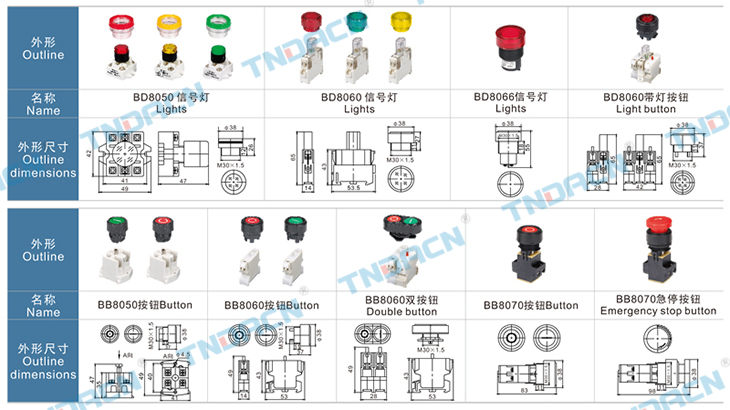

内装防爆元件 Built-in explosion-proof components
专用于隔爆腔:Especially used in explosion-insulation cavity

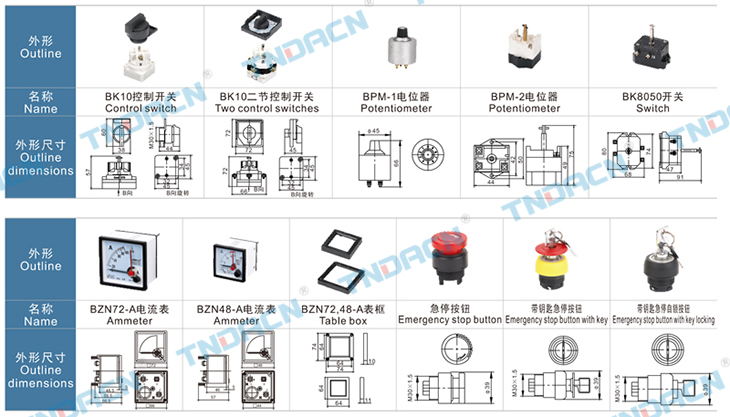

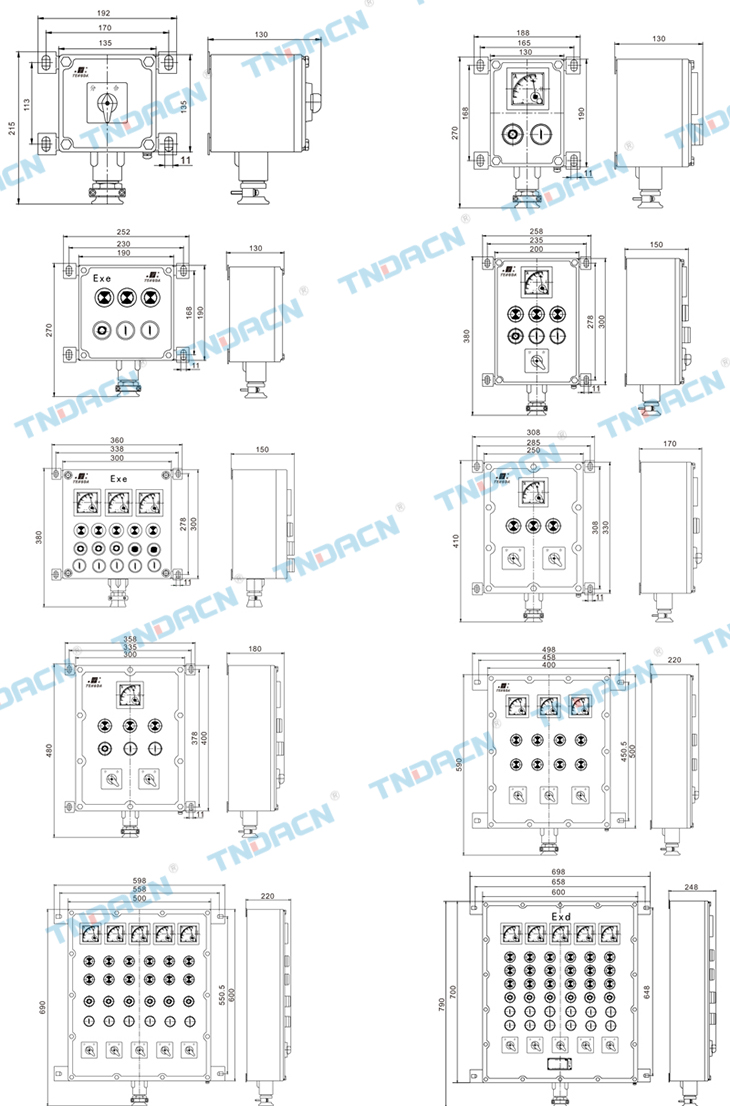

外形及安装尺寸 Outline & installation dimensions
