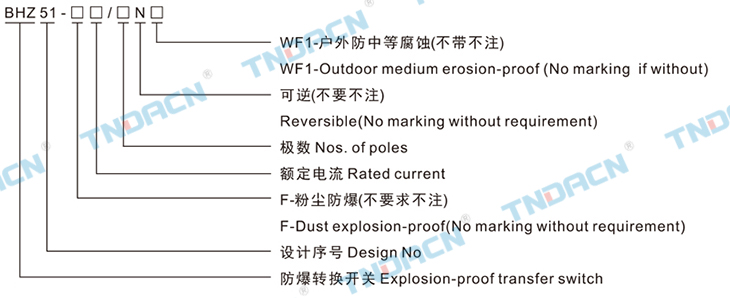

型号含义 Model implication

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境；
3.户内、户外(IP54、IP65*)；
4.温度组别：T1~T4/T5/T6；
5.应用于石油、化工、航天、军工等场所。
1.Hazardous: division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: class ⅡA ⅡB ⅡC or inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil, chemical industry, spaceflight, war ind-ustru and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、
防爆性能优良，表面塑粉附着力强具有良好的防腐能力，表面光洁，美观大方；
2.本产品在电压220~380V，电流10~60A的电气线路中作电源引入开关，并可控制电动机的起动、停止、变速、换向等。
3.钢管或电缆布线。

1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.The product is suitable for the circuit of 220~380V,10~60A, as power guiding switch, to start, stop, change speed orrevert the motor;
3.Wiring wuth steel tube or cable.

主要技术参数 Main technical parameters

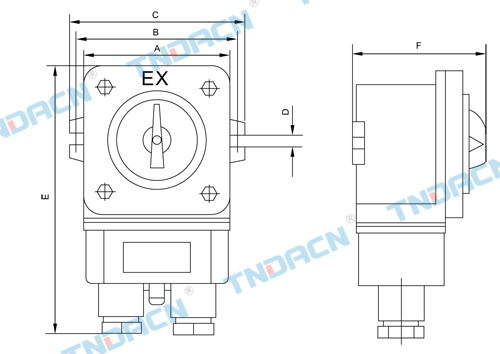

外形及安装尺寸 Outline&installation dimensions
