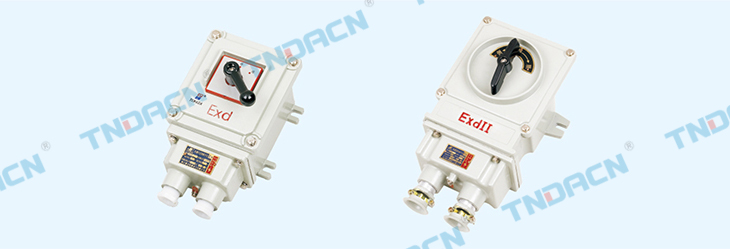

BQXN系列防爆照明开关(IIB)

详细信息

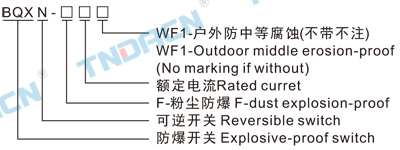

型号含义 Model implication

香港最快现场直播结果

适用范围 Applications

1. 1区、2区危险场所或20区、21区、22区危险场所;
2. ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3. 户内、户外(IP65、IP66*);温度组别:T1~T6。
4.应用于石油、化工、航天、军工等场所。
1. Hazardous:division 1 &2,or 20,21,&22;
2. Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammabledust environment;
3. Indoor or outdoor(IP65,IP66*);Temperature class:T1~T6.
4.Widely using in the fields of oil, chemical industry, spaceflight,
war ind-ustru and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、
防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.内装倒顺开关,用于电流100A以下的电气线路中,作为电源引入开关,并可控制电动起动、停止、换向等。
3.防尘防水性能良好可靠;
4.钢管或电缆布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.The tumbler switch installed insude,it used the electic circuit of circuit being below 100A to be power-supply' insertion
switch, it also could control start、stop ang switching of electrical machine
3.Good performance of water & dust-proof;
4.Wiring with steel tube or cable.

主要技术参数 Main technical parameters

型号规格
Type
额定电压(V)
Rated voltage
额定电流(A)
Rated curret
防护等级
Protection
grade
防爆标志
Ex-proof mark
进线口螺纹(G")
Inlet thread
BQXN-□ 380

15、30、
60、100

IP54 ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)
3/4~11/4

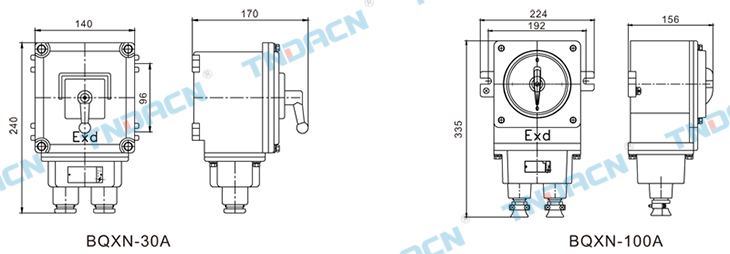

外形及安装举例 Outline and mounting example
