详细信息

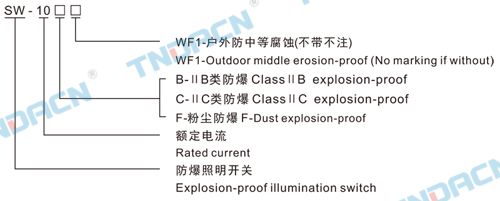

型号含义 Model implication
适用范围 Applications
1. 1区、2区危险场所或20区、21区、22区危险场所；
2. ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境；
3. 户内、户外(IP65、IP66*)；
4. 温度组别：T1~T6；
5.应用于石油、化工、航天、军工等场所。
1. Hazardous:division 1 &2,or 20,21,&22;
2. Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammabledust environment;
3. Indoor or outdoor(IP65,IP66*);
4. Temperature class:T1~T6;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
产品特点 Features
1.壳体采用高强度合金铝一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、
防爆性能优良，表面塑粉附着力强具有良好的防腐能力，表面光洁，美观大方；
2.ⅡB级内装隔爆开关元件，IIC级内装HZ10组合开关；
3.防尘防水性能良好可靠；
4.钢管或电缆布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2. Built in flame-proof switch component for class IIB, built in Hz10 combination switch for class IIC
3. Good performance of water & dust-proof;
4. Wiring with steel tube or cable.
主要技术参数 Main technical parameters
*.要求IP66，需注明。IP66 Requirements must be marked

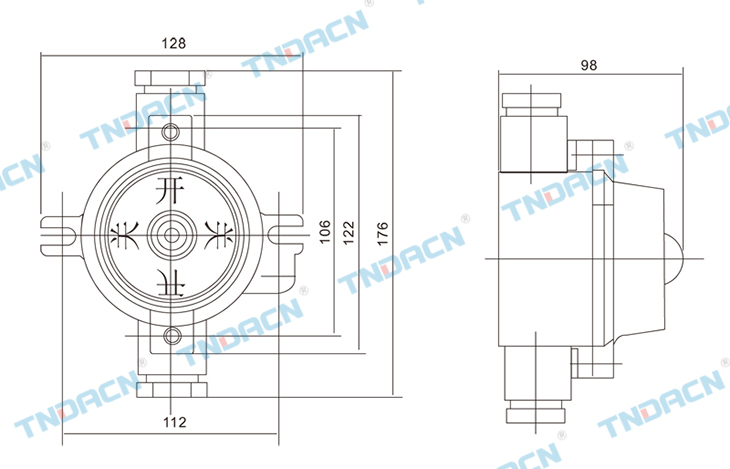

外形及安装尺寸 Outline & installation dimensions
