详细信息

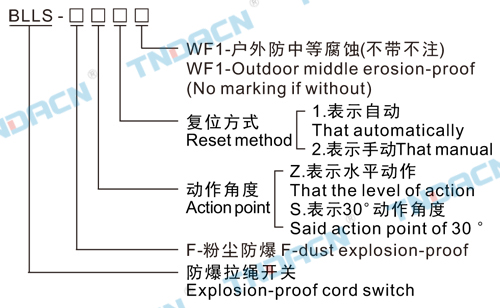

型号含义 Model implication
适用范围 Applications
1.1区、2区危险场所或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境；
3.户内、户外(IP54、IP65*)；
4.温度组别：T1~T4/T6；
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammable
dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T6;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on
产品特点 Features
1.壳体采用高强度铝合金一次性压铸成型，表面经高速 抛
丸清理后高压静电喷塑，外壳结构紧凑合理，强度好，
防爆性能优良，表面塑粉附着力强，具有良好的防腐性
能，外表整洁，美观大方；
2.是输送机自动区控制不可缺少的传感元件；
3.具有强度高，重量轻，密封好，使用寿命长等优点；
4.钢管或电缆布线。
1.Enclosure is cast with high intensity aluminum alloy, surfaceis sprayed with plastic by high voltage static electicity, after
the highly impeller cleaning. The structure of enclosure isreasonable, high-intensive and perfect-explosive and thesurface plastic of good adhesive force is excellent in explosion-proof and appearance;
2.Is the automatic zone control conveyors indispensable sensor;
3.With high strength, light weight, sealed, and long life;
4.Wiring with steel tube or cable.
主要技术参数 Main technical parameters

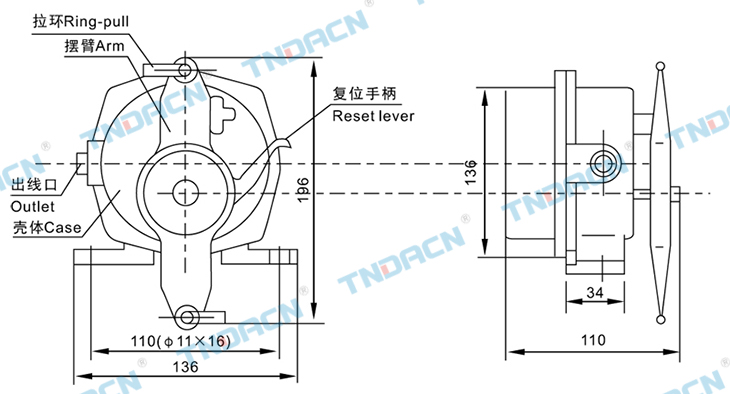

外形及安装尺寸 Outline&installation dimensions
