详细信息

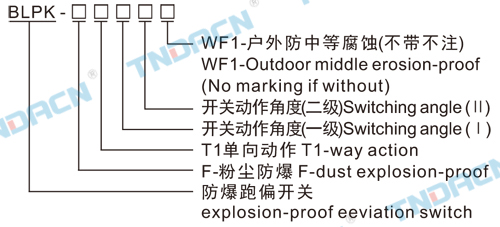

型号含义 Model implication
适用范围 Applications
1.1区、2区危险场所或20区、21区、22区危险场所; 2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境; 3.户内、户外(IP54、IP65*); 4.温度组别:T1~T4/T6; 5.应用于石油、化工、航天、军工等场所。 1.Hazardous:division 1 &2,or 20,21,&22; 2.Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammable dust environment; 3.Indoor or outdoor(IP54,IP65*); 4.Temperature class:T1~T4/T6; 5.Widely using in the fields of oil, chemical industry, spaceflight, war ind-ustru and so on.
产品特点 Features
1.壳体采用高强度铝合金一次性压铸成型,表面经高速 抛 丸清理后高压静电喷塑,外壳结构紧凑合理,强度好, 防爆性能优良,表面塑粉附着力强,具有良好的防腐性 能,外表整洁,美观大方; 2.是输送机自动区控制不可缺少的传感元件; 3.可用于输送机胶带跑偏的检测; 4.防止由于胶带跑偏而造成物料溢出等故障; 5.钢管或电缆布线。 1.Enclosure is cast with high intensity aluminum alloy, surfaceis sprayed with plastic by high voltage static electicity, after the highly impeller cleaning. The structure of enclosure isreasonable, high-intensive and perfect-explosive and thesurface plastic of good adhesive force is excellent in explosion-proof and appearance; 2.Is the automatic zone control conveyors indispensable sensor; 3.Can be used for the detection of deviation of conveyor belts; 4.To prevent the deviation of the tape and other failures caused by spillage. 5.Wiring with steel tube or cable.
主要技术参数 Main technical parameters
2 2 2 2
IP55

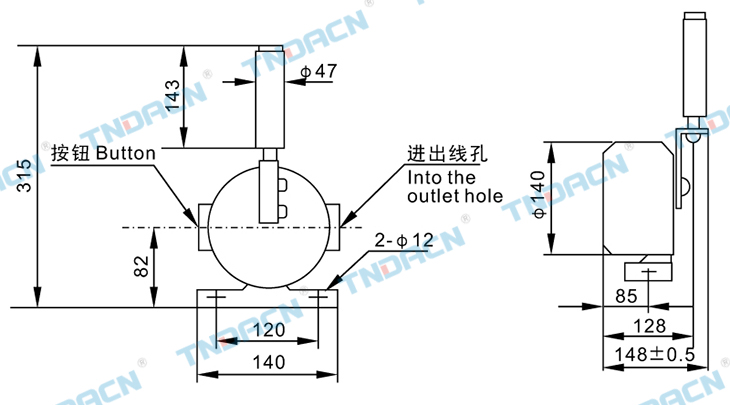

外形及安装尺寸 Outline&installation dimensions
