详细信息

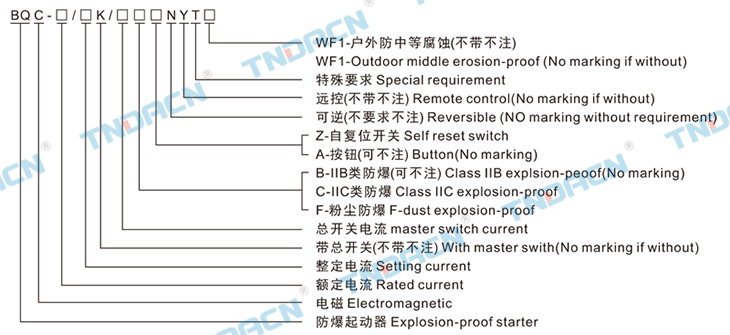

型号含义 Model implication
适用范围 Applications
1.1区、2区危险场所或20区、21区、22区危险场所; 2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境; 3.户内、户外(IP54、IP65*); 4.温度组别:T1~T4/T6; 5.应用于石油、化工、航天、军工等场所。 1.Hazardous:division 1 &2,or 20,21,&22; 2.Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammable dust environment; 3.Indoor or outdoor(IP54,IP65*); 4.Temperature class:T1~T4/T6; 5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
产品特点 Features
1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、 防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方; 2.内装断路器、接触器、热继电器等,可控制电机的直接起动、停止,并对过载、短路和失压进行保护; 3.钢管或电缆布线。 1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance; 2.Built-in circuit breaker, contactor, thermal relay, to start or stop motor, with overload, short circuit and voltage decompression protection functions; 3.Wiring with steel tube or cable.
主要技术参数 Main technical parameters
*.要求IP66,需注明。IP66 Requirements must be marked

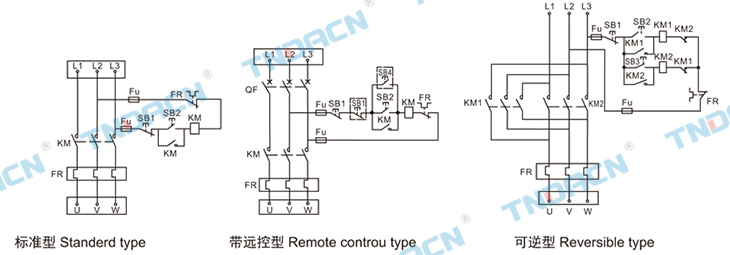

电气原理图 Electric scheme

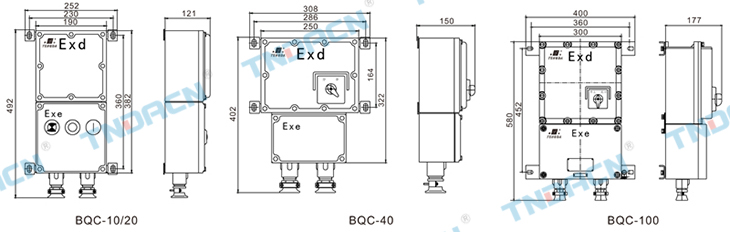

外形及安装尺寸 Outline & installation dimensions
