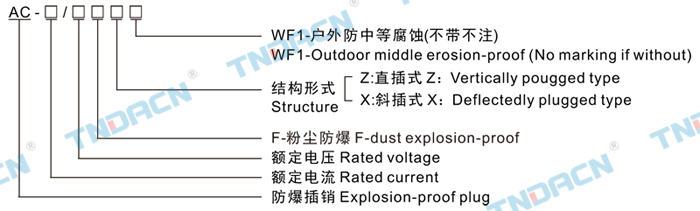

型号含义 Model implication
适用范围 Applications
1.1区、2区或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC类爆炸性气体环境或或燃性粉尘环境;
3.户内、户外(IP54,IP65*);
4.温度组别:T1~T4;
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1&2 or zone 20、21、22;
2.Explosive gas or st e a m a t m o s p h e re: class ⅡA,ⅡB,ⅡCor flammable dust atmospheres;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class: T1~T4;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
产品特点 Features
1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.插销与开关制成联锁结构,只有开关断开后方能拔出插头。
3.钢管或电缆布线均可。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.The plug together with swich is constructed to from interlocks. Only if switch is off ,the plug can be drawn out.
3.Conduit wiring or cable wiring.
主要技术参数 Main technical parameters

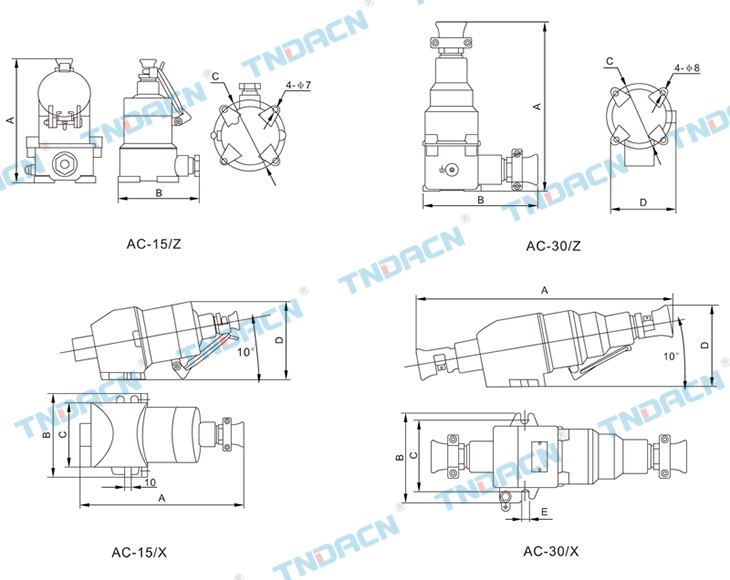

外形及安装尺寸 Outline & installation dimensions
