AC-30、63-100系列防爆插销(IIB、IIC)

详细信息

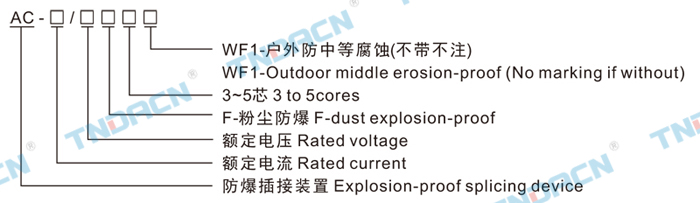

型号含义 Model implication

香港最快现场直播结果

适用范围 Applications

1.1区、2区或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC类爆炸性气体环境或或燃性粉尘环境;
3.户内、户外(IP54,IP65*);
4.温度组别:T1~T4;
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1&2 or zone 20、21、22;
2.Explosive gas or steam atmosphere: class ⅡA,ⅡB,ⅡC or flammable dust atmospheres;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class: T1~T4;
5.Widely using in the fields of oil, chemical industry, spaceflight, war ind-ustru and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、
防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.插座上有分合指示;
3.插座与插头设有联锁装置,断电后方能插拔;
4.50~100A插座内装断路器,具有过载、短路保护;
5.钢管或电缆布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Socket has indicator of Open/Close;
3.The plug and socket is interlocked with switch. you should could insert or pull out the plug after cutting power;
4.50~100A socket built in circuit breaker, with overload, short circuit protection functions;
5.Wiring with steel tube or cable.

主要技术参数 Main technical parameters

产品型号
Type
额定电压(V)
Rated voltage
额定电流(A)
Rated current
进口螺纹
Inlet thread(G")
出口螺纹
Outlet thread(G")
AC-63
AC-100
220/380 63
100
G1 1/2"
G2"
G1 1/2"
G2"



防爆标志
Ex-mark
防护等级
Protection
grade
防腐等级
Erosion-proof
class
电缆外径
Cable outer dia(mm)
ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(欧标)
ExdⅡCT6/T4等效于 Ⅱ2G ExdⅡCT6(欧标)
DIP A20 TA,T6/T4等效于 Ⅱ1D ExtD A20 T6(欧标)
IP54
*IP55
WF1 φ12~φ 30
进φ18~φ 30出φ25~φ37

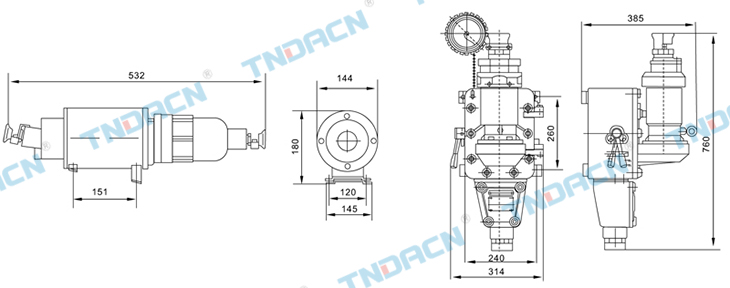

外形及安装尺寸 Outline & installation dimensions
