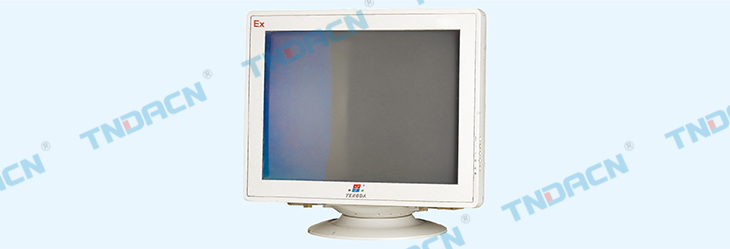

BDN系列防爆电脑(IIB、IIC)

详细信息

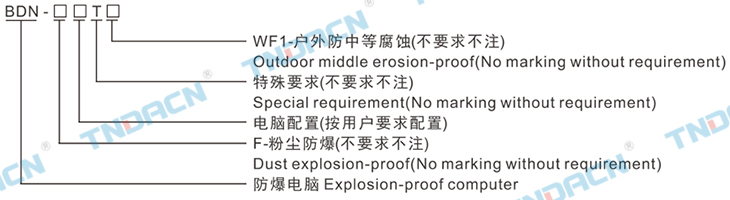

型号含义 Model implication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2ⅡA、ⅡB、ⅡC类爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP65、IP66*);
4.温度组别:T1~T4;
5.应用于石油、化工、航天、军工等场所。
1.Hazardous: division1&2,or20,21,&22;
2.Explosive gas atmosphere: class ⅡA,ⅡB,ⅡC or inflammable
dust environment;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T4;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

产品特点 Features

1.外壳采用优质碳素钢或不锈钢制成,主机与显示器一体化设计,置于正压腔内安全可靠;
2.显示器采用国际知名品牌;
3.操作键盘为工控专用薄膜键盘,具有较强的防水、防尘和抗干扰能力,经本安处理。操作方便,安全可靠;
4.鼠标经本安处理,采用滚迹球,美观大方,操作灵活方便。
1.the enclosure is made of high quality carbon steel or stainless stel, master and monitor are designed integrated,safe andreliable in Positive pressure chamber;
2.the monitor are world famous brand;
3.Operating keyboard are film keyboard, strong anti-jamming ability, and the Ann. Easy operation, safe and reliable;
4.the mouse, after deling in a special process, rolling motion, beautiful and generous, convenient to operate.

主要技术参数 Main technical parameters

型号
Type
额定电压(V)
Rated voltage
防爆标志 Ex-mark 防护等级
Degree
of protection
进线口螺纹(G)
Inlet thread
BDN-□□□ 220 Expdm[ia]iaⅡ BT4 等效于
Ⅱ 2G ExPdm[ia]ia Ⅱ BT4(欧标)
Expdm[ia]iaⅡ CT4 等效于
Ⅱ 2G ExPdm[ia]ia Ⅱ Ct4(欧标)
DIP A20 TA,T4等效于
Ⅱ1D Ex tD A20 T4(欧标)
Ip65
Ip66*
G3/4
