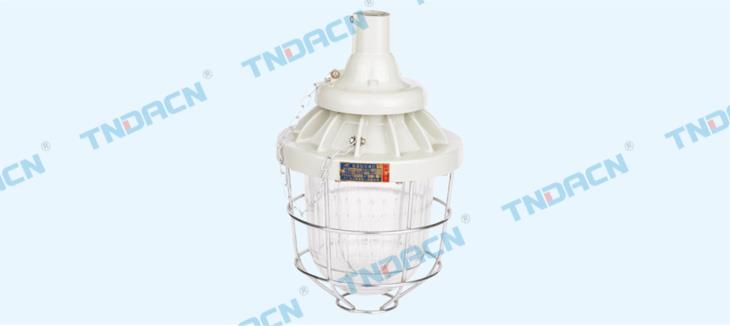

ccd-200系列隔爆型防爆灯(ⅡC)

详细信息

型号含义 Modelimplication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP54、IP65*);
4.温度组别:T1~T4/T5/T6;
5.应用于石油、化工、航天、军工等场所。

1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、 防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.灯罩采用高硼硅钢化玻璃,透光率高,可承受高强冲击;
3.采用密封结构,保证了较强的防水、防尘能力;
4.灯体和出线套采用无线连接,便于用户安装和维修;
5.钢管布线
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Lamp housing is made of high borosilieate toughened glass with high transmittance, and it can withstand strong impct.
3.It has sealing structure, which has ensured the great functions of water proof and dust proof.
4.The lampbody and outlet sleeve use wireless wire connecting, it's convenient for the users to install and maintaince.
5.Conduit wiring.

主要技术参数 Main technical parameters

防爆标志
Ex-mark
防护等级
Protection grade
电缆外径(φ,mm)
Cable's outer
diameter
进线口螺纹(G")
Inlet's thread
灯座代号
Lamp socket
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)
IP65

10~14 3/4 E27


配用光源 Supplied with light source

光源类型
Lamp type
额定电压(V)
Rated voltage
额定功率(W)
Rated power
自镇汞灯 self-ballasted mercury vapor lamp
白炽灯 Incandescent lamp
高压汞灯 Hi-mercury vapor lamp
高压钠灯 Hi-pressure sodium vapor lamp
金卤灯 Metal halide lamp
220
220
220
220
220
125,160
200
125
70,110
70,100

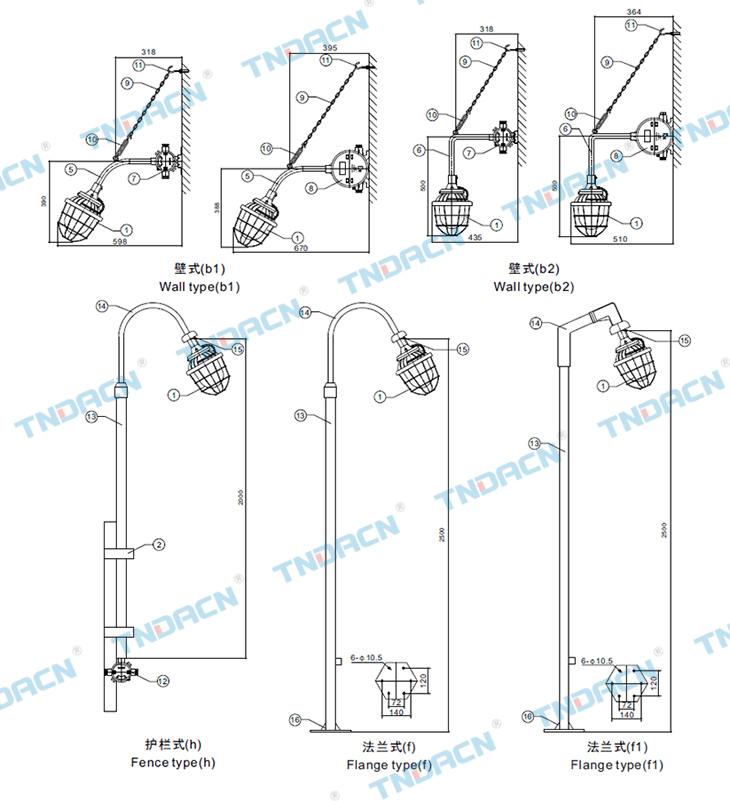

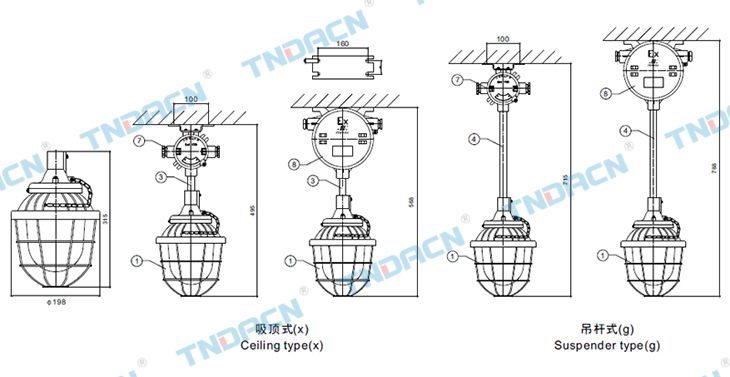

外形及安装尺寸 Outline&installation dimension

香港最快现场直播结果
香港最快现场直播结果

安装配件表 Installation accessories and spare parts

序号
No.
名称 Description 序号
No.
名称 Description
1
2
3
4
5
6
7
8
灯具 Lamp
U型管夹 U-tube clip
管接头 Fittings
吊杆 Boome
30°弯杆 30°bend-rod type
90°弯杆 90°bend-rod type
吊灯盒Lighting box
防爆整流器 Explosion-proof ballast
9
10
11
12
13
14
15
16
链条Chain
cc型索具螺旋扣cc-type rigging screw
吊钩Hook
防爆三通接线盒Explosion-proof terminal box links
平台灯杆Platform Pole
平台弯杆 Platform bend-rod type
活接头 Union
底板 Bottom board
