详细信息

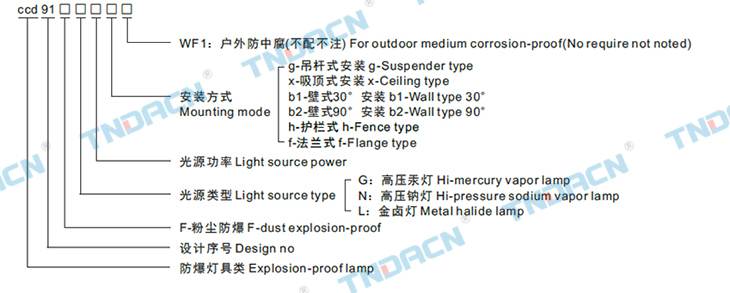

型号含义 Modelimplication
适用范围 Applications
|
1.1区、2区危险场所或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境；
3.户内、户外(IP54、IP65*)；
4.温度组别：T1~T4/T5/T6；
5.可配装白炽灯、汞灯、高压钠灯、金卤灯；
6.应用于石油、化工、航天、军工等场所。
|
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Equipped with incandescent lamp, mercury vapor lamp,
high-pressure sodium vapor lamp, metal halide lamp.
6.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.
|
产品特点 Features
1.壳体采用高强度合金铝一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、 防爆性能优良，表面塑粉附着力强具有良好的防腐能力，表面光洁，美观大方；
2.灯罩采用高硼硅钢化玻璃，透光率高，可承受高强冲击；
3.采用密封结构，保证了较强的防水、防尘能力；
4.灯体和出线套采用无线连接，便于用户安装和维修；
5.镇流器采用特制的环形镇流器，耐热等级高，镇流器装于灯体中，灯具能够长寿命无故障动行。由于 取消专配的镇流器箱，使灯具更加经济；
6.钢管布线
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Lamp housing is made of high borosilieate toughened glass with high transmittance, and it can withstand strong impct.
3.It has sealing structure, which has ensured the great functions of water proof and dust proof.
4.The lampbody and outlet sleeve use wireless wire connecting, it's convenient for the users to install and maintaince.
5.The ballast uses special annular ballast, high heat-resistance, the inner ballest is installed in the lampbody, the lamp has long life and calling off the special ballast box, which makes the lamp more economically.
6.Conduit wiring.
主要技术参数 Main technical parameters
|
|
配用光源 Supplied with light source

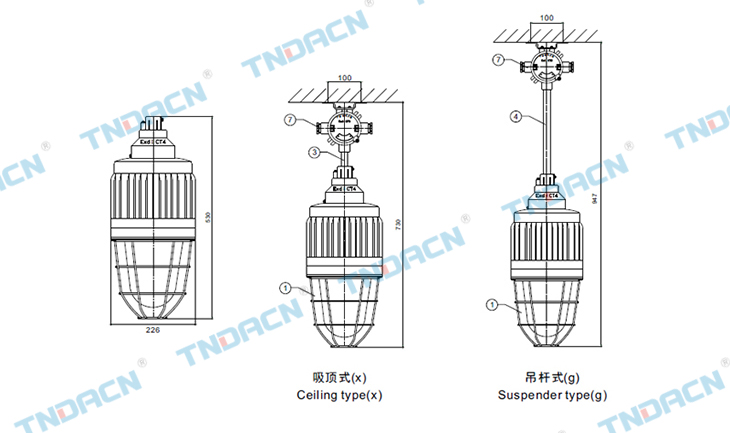

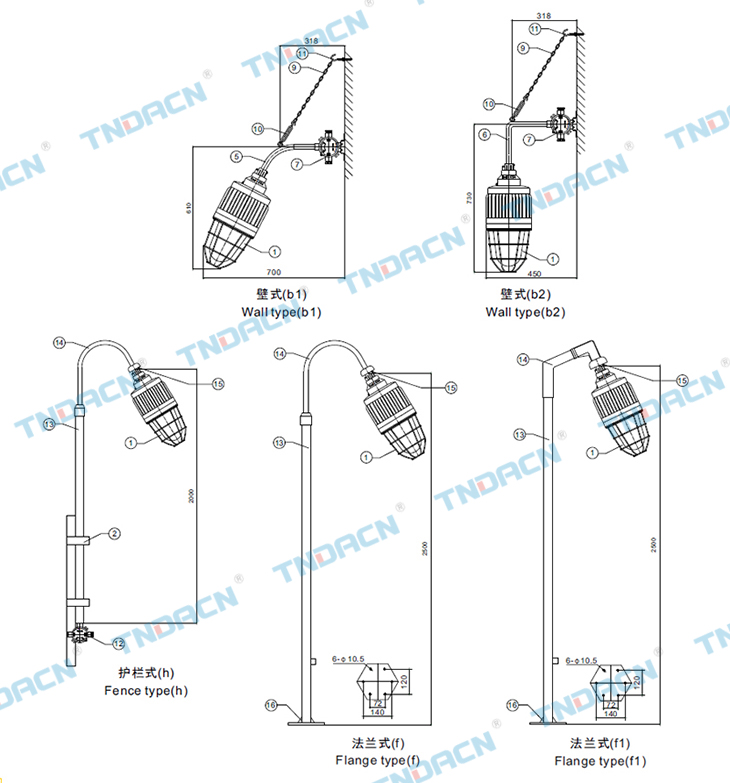

外形及安装尺寸 Outline&installation dimension
安装配件表 Installation accessories and spare parts
