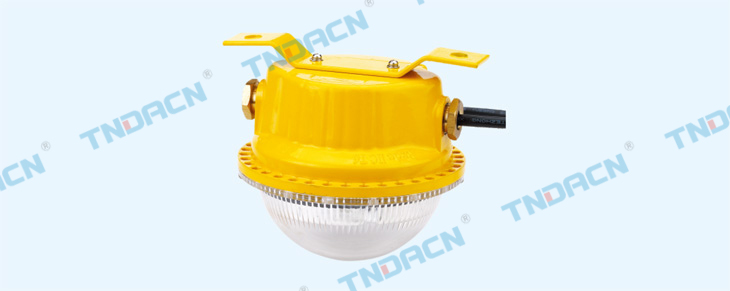

BFC8183系列防爆固态免维护灯(ⅡC)

详细信息

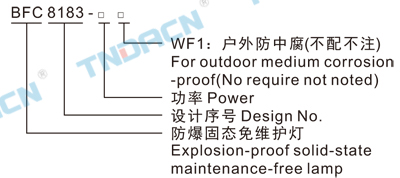

型号含义 Model implication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP54、IP65*);
4.温度组别:T1~T4/T5/T6;
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC orinflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.灯罩材质采用钢化玻璃,透光性好,抗高能量冲击,且为防眩光设计,经过光学二次设计并得到了实际测试的验证;
3.本系列产品增加了遥控控制系统,为客户带来更加便捷的操作。
4.反光罩材质为优质铝板,其反光设计经过了专业光学软件的二次配光设计,且通过了实际测试的验证,提高了灯具的使用率;
5.采用密封结构,保证了较强的防水、防尘能力;
6.钢管布线。
1.Shell made of high strength aluminum alloy casting off thesurface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength,Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth,elegant appearance;
2.Lamp housing is made of high borosilicate glass with greattransmittance and high energy shock resistance. It's theantiglare design. After designed by special software designof distribution for two times, it can get the confirmation;
3.This series adds remote control system, provide customersa more convenient operation.
4.Reflector is made of high-quality aluminium plate. After ithas been designed by special software design of distributionfor two times, and passed the actual test, the availabilityfactor of lamps can be raised;
5.It has sealing structure, which has ensured the great functionsof water proof and dust proof.
6.Wiring with steel tube.

主要技术参数 Main technical parameters

防爆标志
Ex-mark
防护等级
Protection class
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)
IP65



电缆外径(φ,mm)
Cable's outer
diameter
进线口螺纹(G")
Inlet's thread
光源
Light source
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)
3/4 LED

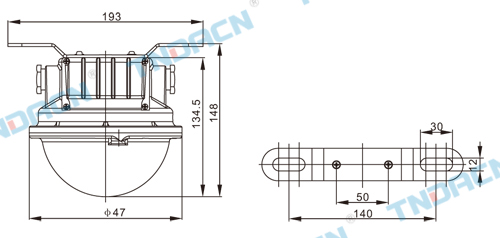

外形及安装尺寸 Outline&installation dimension
