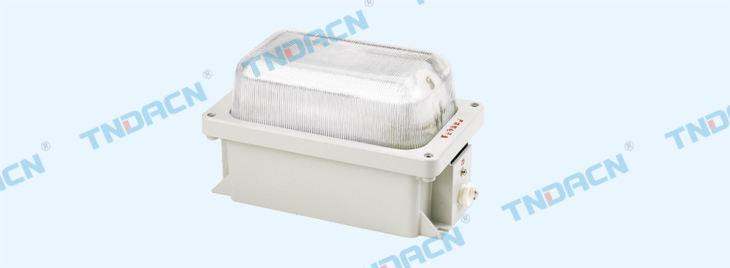

BF91系列增安型防爆防腐灯(e)

详细信息

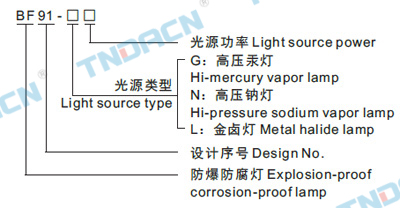

型号含义 Modelimplication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP54、IP65*);
4.温度组别:T1~T4/T5/T6;
5.可配装白炽灯、汞灯、高压钠灯、金卤灯;
6.应用于石油、化工、航天、军工等场所。

1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Equipped with incandescent lamp, mercury vapor lamp,
high-pressure sodium vapor lamp, metal halide lamp.
6.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型,表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、 防爆性能优良,表面塑粉附着力强具有良好的防腐能力,表面光洁,美观大方;
2.灯罩材质采用高硼硅玻璃,透光性好,且具有防眩光设计;
3.具有良好的防尘,防爆性能。
4.镇流器、触发器均安装于灯体内,安装简单方便。
5.内装元件用浇封结构,性能稳定且防爆性能较高。
6.钢管布线。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Lamp housing is made of high borosilicate glass with great transmittance and high energy shock resistance. It's the antiglare design.
3.Possessing good properties for dustproofing and corrosion-proofing.
4.The ballast and trigger are all mounted inside the lampbody so that it's easy for installation.
5.The inner elements abopt casting structure with stable property and high strength for corrosion-proof.
6.Conduit wiring.

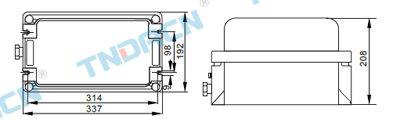

外形及安装尺寸 Outline&installation dimension

香港最快现场直播结果


主要技术参数 Main technical parameters

防爆标志
Ex-mark
防护等级
Protection grade
电缆外径(φ,mm)
Cable's outer
diameter
进线口螺纹(G")
Inlet's thread
灯座代号
Lamp socket
ExeⅡT2等效于 Ⅱ2G ExeⅡT2(欧标)
DIP A20 TA,T2等效于 Ⅱ1D ExtD A20 T2(欧标)
IP55

10~14 3/4 E27
