当前位置: 首页 > 产品总汇 > 防爆灯具类 > BCS系列防爆手电筒(ⅡB、ⅡC)

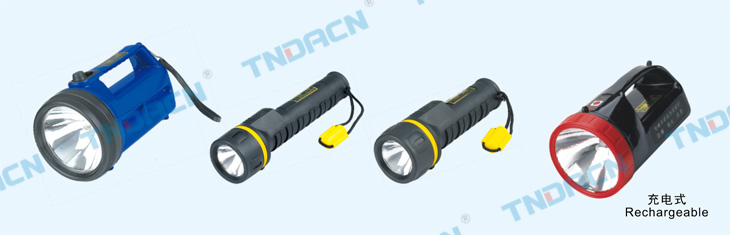

BCS系列防爆手电筒(ⅡB、ⅡC)

详细信息

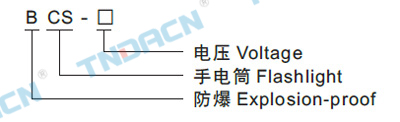

型号含义 Modelimplication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP54、IP65*);
4.温度组别:T1~T4/T5/T6;
5.应用于石油、化工、航天、军工等场所。

1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.

产品特点 Features

1.外壳采用工程塑料一次性注塑成型,结构紧凑合理,强度高,外形美观大方;
2.前端透明罩采用特制聚碳酸酯,具有透光性好,防腐性能强等特点;
3.产品系列携带和使用均很方便,设置有人性化防滑磨砂设计以及便于携带的携带尼龙丝扣;BAS-6手电筒不设置有便于手提的手提把手;
4.产品均有优良的防水设计,开关按钮部分设置有特 殊的防水处理结构。
5.照射距离50米。
1.It is moulded by engineering plastic for one time ,which has tight structure, high strength and beautiful appearance.
2.In the front of lamps, transparent cover is made of poly car-bonate, which has the features of great transmittance and strong corrosion proof functions.
3.It is convenient to carry and use. The portable flashlight has the human design of skid proof. Milled sand and nylon thread. Additionally, the flashlight of BAS-6 has an handle.
4.These products has a water proof design. In the parts of switch and button, it has water proof structure.
5.The irradiation range is 50m.

主要技术参数 Main technical parameters

型号
Type
电压
Voltage (V)
电珠
Lamp (V/A)
电池数
Nos. Of battery
BAS-3
BAS-4.5
BAS-6
3
4.5
6
2.4/0.25
3.6/0.3
5.4/0.5
2
3
4



防爆标志
Ex-mark
电池规格
Battery type
ExeibⅡCT6等效于 Ⅱ2G ExeibⅡCT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)
1#



防护等级
Degree of
protection
灯座
Lamp
holder
防腐等级
Erosionproof
class
充电式手电筒Rechargeable flashlight
充电时间
Charging
time
(h)
连续放电时间
Discharging time
工作光(h)Work light 强光 Strong light (h)
IP65 E9

WF2 8~10 ≥3.5 ≥3.5 1.5

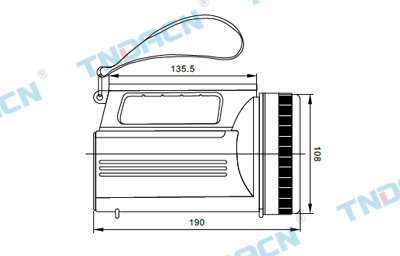

外形及安装尺寸 Outline&installation dimension
