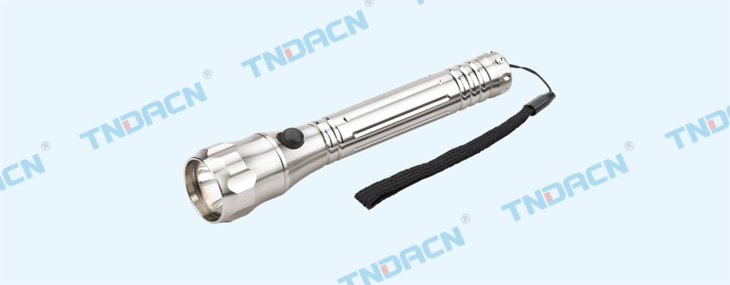

BCS51系列防爆手电筒(ⅡC)

详细信息

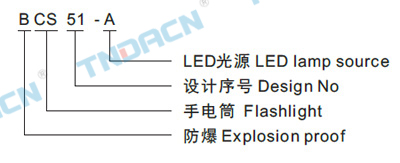

型号含义 Modelimplication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP54、IP65*);
4.温度组别:T1~T4/T5/T6;
5.应用于石油、化工、航天、军工等场所。

1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.

产品特点 Features

1.高硬度铝合金外壳, 表面喷砂处理以达到防滑下效果,表面整体色为银色,整体美观大方;
2.采用磁性开关, 可达到隔离防水效果, 工作光、强光可任意选用;
3.采用高能无记忆电池,容量大、寿命长、放电率低;
4.采用特种灯泡时,其光效较高、照射距离远、显色指数高, 采用特制LED光源时, 光效高可达到100km/w,能耗小,使用寿命更长。
5.照射距离可达200米;
6.密封性能好,体积小,重量轻。
1.It is made of aluminum alloy with high hardness. The exterior should be spraying with sand ,which can reach the effect of skid proof. The global color is argent and it has beautiful appearance.
2.In the lamps, it has a magnetic switch ,which have the functions of isolation and water proof. Working light and highlight can be chose freely.
3.It adopts high non -memory battery. There are some adva-ntages of large capacity a, long service life and low discharge rate.
4.We use a special bulb in the flashlight, which has fine lighting effect, long irradiation range and great color rendering. Using LED illuminant, the lighting effect can be reached 100 lm/w, and it has a low energy loss and a long service life.
5.The irradiation range is 200m
6.It has great sealing performance, small volume and light weight.

主要技术参数 Main technical parameters

额定电压
Rated Voltage
额定容量(mAh)
Rated capacity
充电时间(h)
Discharging time
连续放电时间(h)
Discharging time
电池使用寿命(循环)
Battery life (circle) (H)
7.2 2000

4 8 ~1000



防爆标志
Ex-mark
防护等级
Degree of protection
重量
Weight
外形尺寸
Outline dimensions (mm)
ExdⅡCT6等效于 Ⅱ2G ExdⅡCT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)
IP65

0.28 φ40×210


光源
Bulb
工作电压(V)
Work voltage
工作电流
Work current(mA)
平均使用寿命
Average life (h)
LED 3.3~3.5

350 100000

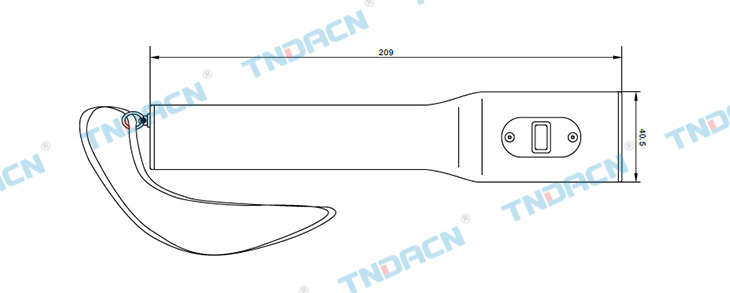

外形及安装尺寸 Outline&installation dimension
