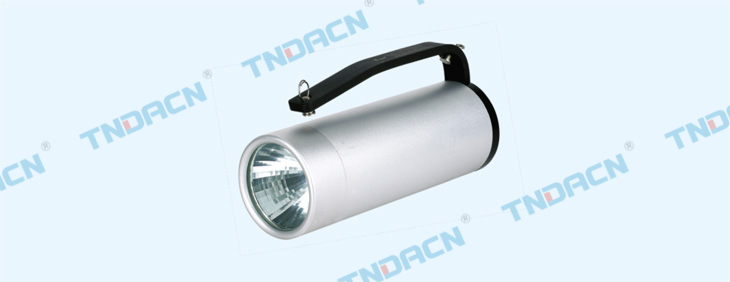

BCS52系列手提式防爆探照灯(ⅡC)

详细信息

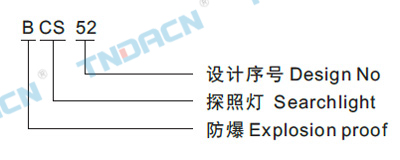

型号含义 Modelimplication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP54、IP65*);
4.温度组别:T1~T4/T5/T6;
5.应用于石油、化工、航天、军工等场所。

1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.

产品特点 Features

1.高硬度铝合金外壳,表面喷砂处理,外形美观;
2.特制灯泡、寿命长、耗能少、节能降耗高效等特点, 聚光柔和用于交通事故和刑事侦察现场摄影等痕迹、指纹、拍照),强光光通量 1200流明,射程600米,连续工作可过1.5小时,工作光光通量600流明,连续工作时间超过3.5小时;
3.采用脉冲调光技术,强光、工作光可任意选用;
4.采用高能无记忆环保电池,容量大、无污染、充放电性能优异、自放电率低;
5.设有低压保护和防误操作装置,不用时可将开关锁死,正常使用后自动锁定;
6.携带方便,可手持地、肩挎等,具有良好的防水、防尘功能。
1.It is made of aluminum alloy with high hardness, the surface with sand blasting, has beautiful appearance.
2.Special lamp, long-life, low-consume,save energy and high efficient, gather lighting is soft (can be used for traffic accidents and criminal investigation at the scene photography, the marks, fingerprints, photographs etc.), Stronger luminous flux, 1200 lumen, flight range 600m,continue working time 1.5hours,if working luminous flux 600 lumen, continue working time over 3.5 hours.
3.It adopts pulse adjust technical, strong light, working light can be chosen
4.It adopts high-energy non-memory environmental protection batteries, big capacity, no-pollution,charge and discharge performance is excellent, low self-discharge rate;
5.With low-voltage protecting and anti-mistake cquipment, the switch can be locked if no using, after normal using, it locked automaticlly.
6.Easy to carry, can be handheld, shouldered and so on ,hs a good water-proof, dust-proof function.

主要技术参数 Main technical parameters

额定电压
Rated Voltage
额定容量(mAh)
Rated capacity
充电时间(h)
Discharging time
连续放电时间(h)
Discharging time
12 2.8

8~10 8



电池使用寿命(循环) Battery life (circle) 防爆标志
Ex-mark
防护等级
Degree of
protection
重量
Weight
外形尺寸
Outline dimensions
(mm)
工作光 (h)
Work light
强光 (h)
Strong light
≥3.5 1.5 ExdⅡCT6等效于 Ⅱ2G ExdⅡCT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)


IP65 1.3 φ70×199


灯泡
Bulb
工作电压 (V)
Work voltage
3.3~3.5
电流 Current(A) 光通量 (lm) 平均使用寿命
Average life
(h)
工作光
Work light
强光
Strong light
工作光
Work light
强光
Strong light
  12

0.8 1.8 600 1200 1200

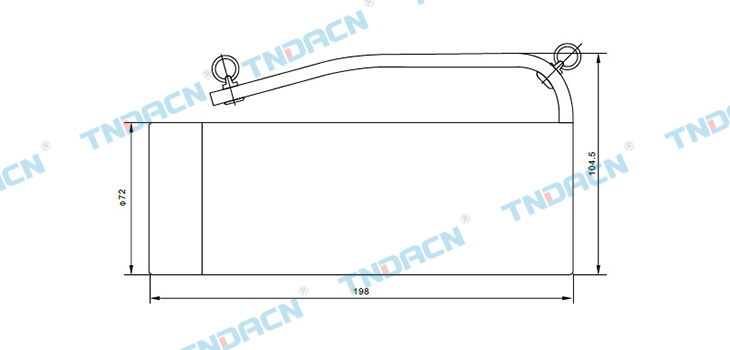

外形及安装尺寸 Outline&installation dimension
