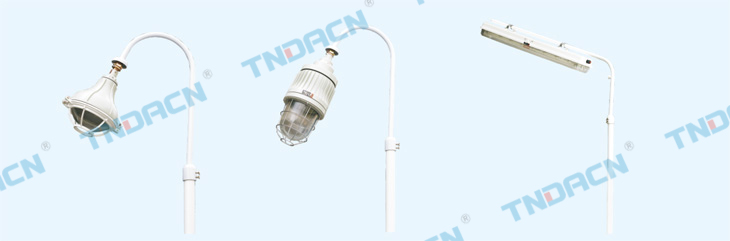

BCP系列防爆平台灯(ⅡB、ⅡC、e)

详细信息

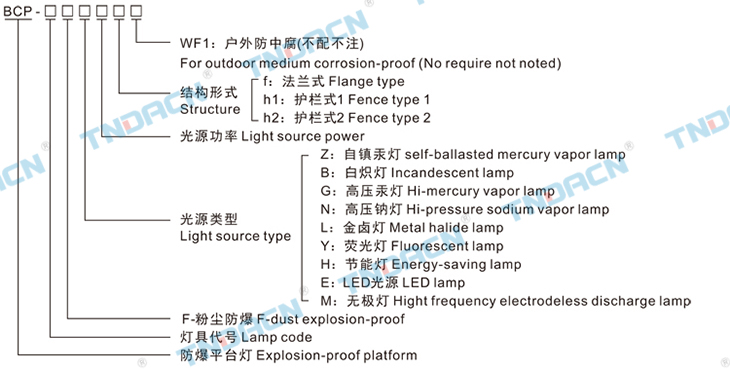

型号含义 Model implication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.户内、户外(IP54、IP65*);
4.温度组别:T1~T4/T5/T6;
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.

产品特点 Features

1.灯具外壳:铸铝合金壳体压铸成型,表面喷塑;不锈钢板拉伸成型;SMC或DMC模压成型;
2.镀锌钢管灯杆,表面喷塑;
3.直杆和弯杆采用焊接式连接提高维护的安全性;
4.钢管或电缆布线。
1.The enclosure is cast with aluminium alloy or strecthed by stainless steel stretching and SMC or DMC extruding, Surfaceis sprayed with plastic;
2.The steel tube is galvanized and the surface of lamp pole is sprayed with plastic;
3.Frank and bend rod type adopts welded connection;
4.Wiring with steel tube or cable.

主要技术参数 Main technical parameters

灯具代号
Code of lamp
灯具型号
Type
防爆标志
Ex-mark
主要技术参数
Main technical parameters
BCP-01

B3C-200(大Big)

ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCP-02 B3C-200(小Small) ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCP-03 BGL-200L ExeⅡT3等效于 Ⅱ2G ExeⅡT3(欧标)
DIP A20 TA,T3等效于 Ⅱ1D ExtD A20 T3(欧标)

BCP-04 BGL-250L ExeⅡT2等效于 Ⅱ2G ExeⅡT2(欧标)
DIP A20 TA,T2等效于 Ⅱ1D ExtD A20 T2(欧标)

BCP-05 B3C-250 ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCP-06 ccd-200 ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCP-07 B3C-400 ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCP-08 BF ExeⅡT2等效于 Ⅱ2G ExeⅡT2(欧标)
DIP A20 TA,T2等效于 Ⅱ1D ExtD A20 T2(欧标)

BCP-09 BPY-40 ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)

BCP-10 BPY-80 ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)

BCP-11 BYS-80 ExedⅡCT6等效于 Ⅱ2G ExedⅡCT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)

BCP-12 ccd91 ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCP-13 ccd92 ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCP-14 ccd93-105W ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCP-15 ccd94-30W ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCP-16 BGL-250G ExeⅡT3等效于 Ⅱ2G ExeⅡT3(欧标)
DIP A20 TA,T3等效于 Ⅱ1D ExtD A20 T3(欧标)




光源Light
source
白炽灯
Incandescent
lamp
自镇汞灯
Self-ballasted
mercury lamp
高压汞灯
Hi-pressure
mercury lamp
高压钠灯
High-pressure
sodium lamp
金卤灯
Metal halide
lamp
灯座
Socket
型号 Type
BCP-01

200W

125,160W 125W 110W 70,100W E27
BCP-02 200W 125,160W 125W 110W 70,100W E27
BCP-03 200W 125,160W 125W   70,100W E27
BCP-04 300W 250W 175,250W   175,250W E40
BCP-05 300W 250W 175,250W 150,250W 175,250W E40
BCP-06 200W 125,160W 125W 70,110W 70,100W E27
BCP-07 450W 250,400W 175,250,400W 250,400W 175,250,400W E40
BCP-08   125,160W 125W 110W 70,100,175,250W E27,E40
BCP-09 内装T8双脚灯管 Built-in lamp T8 feet
BCP-10 内装T8双脚灯管 Built-in lamp T8 feet
BCP-11 内装高效节能单脚灯管 Built-in energy efficient lamps one leg
BCP-12     175,250,400W 175,250,400W 175,250,400W E40
BCP-13     175,250,400W 175,250,400W 175,250,400W E40
BCP-14 内装节能灯 Built-in energy-saving lamps(65,85,105,125)W
BCP-15 内装LED节能灯 Built-in LED energy-saving lamps(20,30,40,50)W
BCP-16 300W 250W 125W,250W 150W,250W 175W,250W E27,E40

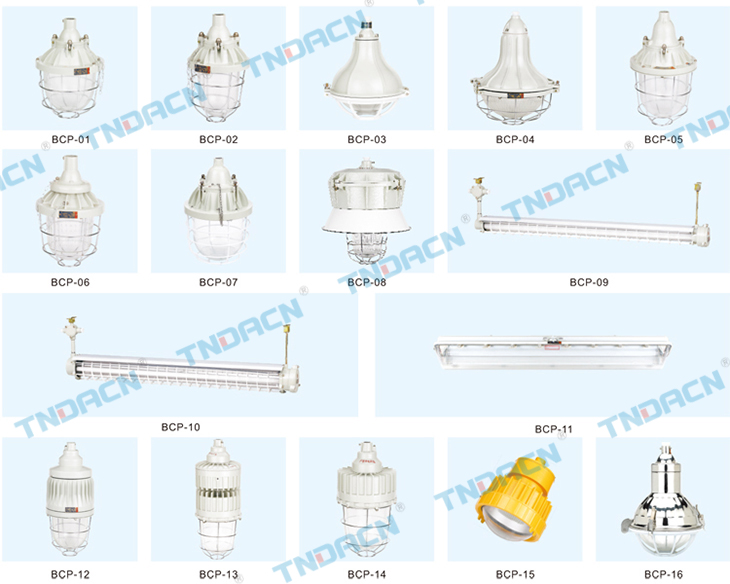

平台灯配用防爆灯 Platform lamp is with explosion-proof lamp

香港最快现场直播结果

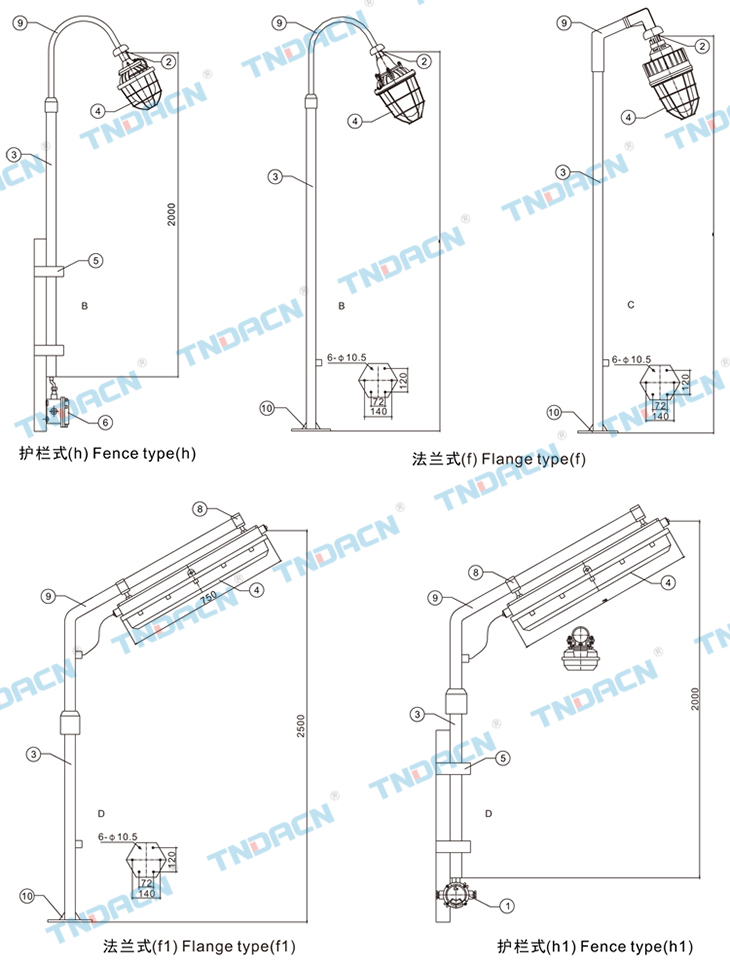

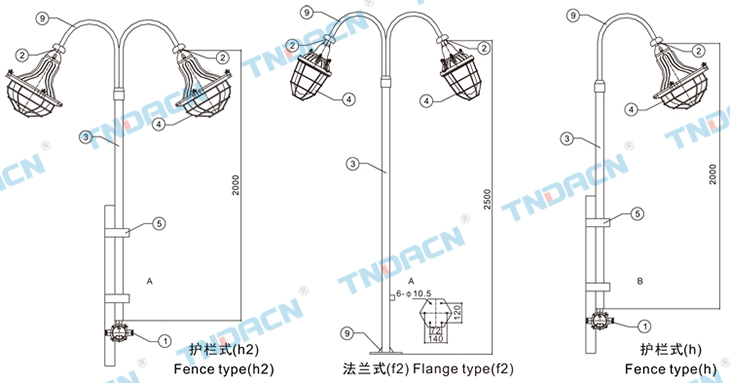

外形及安装尺寸 Outline&installation dimension

香港最快现场直播结果

香港最快现场直播结果

安装配件表 Installation accessories and spare parts

序号
No.
名称 Description 序号
No.
名称 Description
1
2
3
4
5
接线盒3/4" 三通Junction box 3/4" (3 outlets)
活接头 Active connector
管子 Pipe
防爆灯 Explosion-proof lamp
U型管夹 "U" clamp
6
7
8
9
10
镇流器 Ballast
挠性连接管 Flexible connecting pipe
管夹 Clamp
平台弯杆 Platform bending bar
底板 Bottom plate
