BCM系列防爆马路灯(ⅡB、ⅡC、e)

详细信息

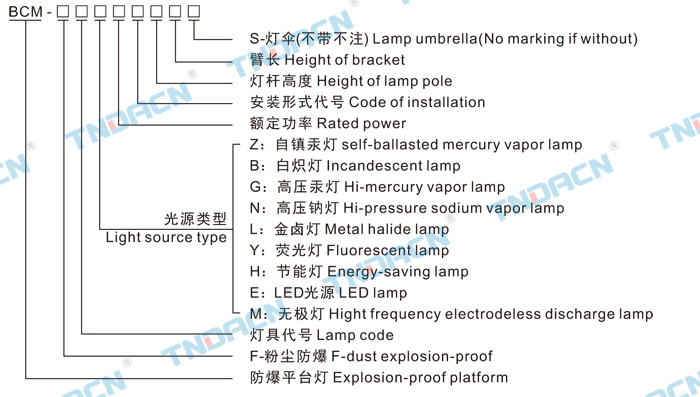

型号含义 Model implication

香港最快现场直播结果

适用范围 Applications

1.1区、2区危险场所或20区、21区、22区危险场所;
2.ⅡA、ⅡB、ⅡC爆炸性气体环境或可燃性粉尘环境;
3.户外(IP65*);
4.温度组别:T1~T4/T5/T6;
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3. outdoor(IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.

产品特点 Features

1.灯具外壳:铸铝合金壳体压铸成型,表面喷塑;不锈钢板拉伸成型;SMC或DMC模压成型;
2.灯杆为镀锌钢管表面喷塑。具有较好的防腐能力。基座采用铸铁制造而成,牢固稳定。
3.灯杆和基座均可用户要求特制。
4.电缆布线。
1.The enclosure is cast with aluminium alloy or strecthed by stainless steel stretching and SMC or DMC extruding, Surface is sprayed with plastic;
2.Junction box or special ballast of road lamp is installed.
3.Lamp pole is galvaniced pipe with plastic-sprayed surface. It can be well corrosive-proof. The base made of cast iron is steadly fixed. Lamp pole and base can be specially made as required.
4.Wiring with or cable.

主要技术参数 Main technical parameters

灯具代号
Code of lamp
灯具型号
Type
防爆标志
Ex-mark
主要技术参数
Main technical parameters
BCM-01

B3C-200(大Big)

ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCM-02 B3C-200(小Small) ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCM-03 BGL-200L ExeⅡT3等效于 Ⅱ2G ExeⅡT3(欧标)
DIP A20 TA,T3等效于 Ⅱ1D ExtD A20 T3(欧标)

BCM-04 BGL-250L ExeⅡT2等效于 Ⅱ2G ExeⅡT2(欧标)
DIP A20 TA,T2等效于 Ⅱ1D ExtD A20 T2(欧标)

BCM-05 B3C-250 ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCM-06 ccd-200 ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCM-07 B3C-400 ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCM-08 BF-L150 ExeⅡT2等效于 Ⅱ2G ExeⅡT2(欧标)
DIP A20 TA,T2等效于 Ⅱ1D ExtD A20 T2(欧标)

BCM-09 ccd91-L250 ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)

BCM-10 ccd92-N250 ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)

BCM-11 ccd93-105W ExedⅡCT6等效于 Ⅱ2G ExedⅡCT6(欧标)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(欧标)

BCM-12 ccd94-30W ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCM-13 ccd95-30W ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCM-14 BEW ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCM-15 BTd92 ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(欧标)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(欧标)

BCM-16 BGL-250G ExeⅡT3等效于 Ⅱ2G ExeⅡT3(欧标)
DIP A20 TA,T3等效于 Ⅱ1D ExtD A20 T3(欧标)




光源Light
source
白炽灯
Incandescent
lamp
自镇汞灯
Self-ballasted
mercury lamp
高压汞灯
Hi-pressure
mercury lamp
高压钠灯
High-pressure
sodium lamp
金卤灯
Metal halide
lamp
灯座
Socket
型号 Type
BCP-01

200W

125,160W 125W 70,110W 70,100W E27
BCP-02 200W 125,160W 125W 70,110W 70,100W E27
BCP-03 200W 125,160W 125W   70,100W E27
BCP-04 300W 250W 175,250W   175,250W E40
BCP-05 300W 250W 175,250W 150,250W 175,250W E40
BCP-06 200W 125,160W 125W 70,110W 70,100W E27
BCP-07 450W 250,400W 175,250,400W 150,250,400W 175,250,400W E40
BCP-08   125,160W 125W 175,250W 70,100,175,250W E27,E40
BCP-09   250,400W 175,250,400W 150,250,400W 175,250,400W E40
BCP-10   250,400W 175,250,400W 150,250,400W 175,250,400W E40
BCP-11 内装节能灯 Built-in energy-saving lamps(65,85,105,125)W
BCP-12 内装LED节能灯 Built-in LED energy-saving lamps(20,30,40,50)W
BCP-13 内装LED节能灯 Built-in LED energy-saving lamps(80,100,200)W
BCP-14 内装高效节能无极灯 Built-in energy efficient lamp(40,50,85,125,160,200)W
BCP-15 300W 250W 125W,250W 150W,250W 175W,250W E27,E40
BCP-16 300W 250W 125W,250W 150W,250W 175W,250W E27,E40

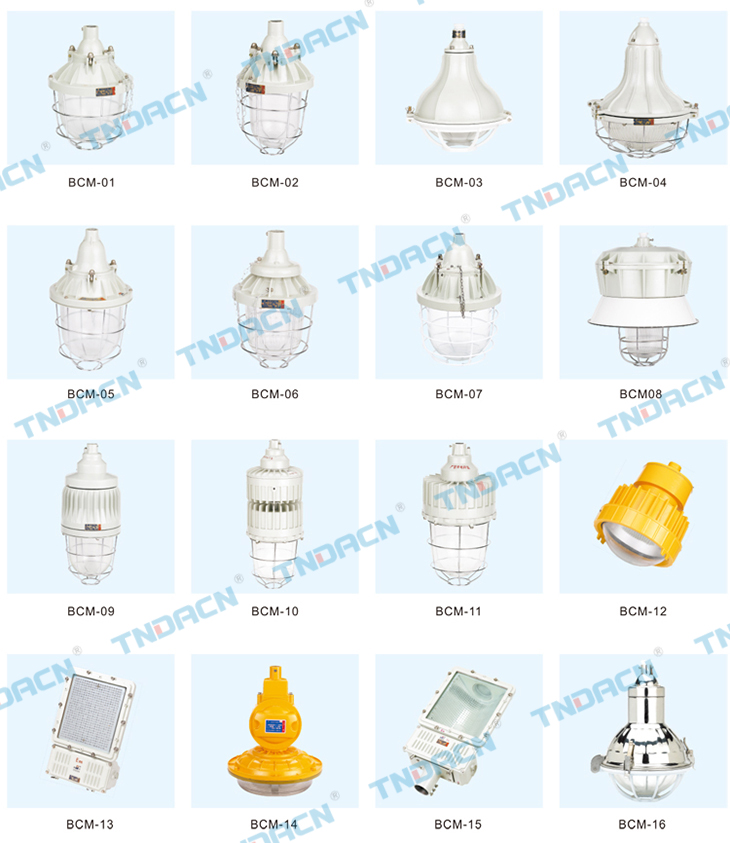

平台灯配用防爆灯 Platform lamp is with explosion-proof lamp

香港最快现场直播结果

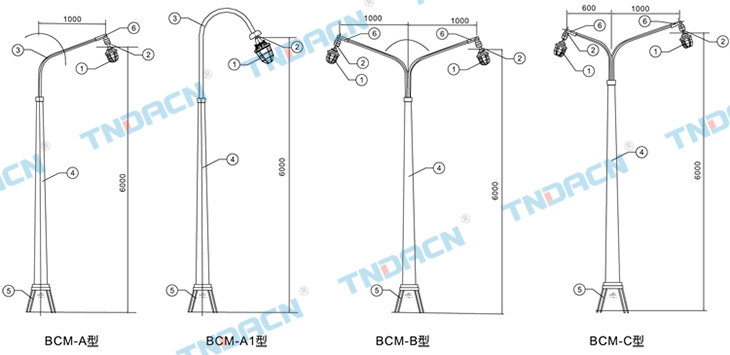

外形及安装尺寸 Outline&installation dimension

香港最快现场直播结果

安装配件表 Installation accessories and spare parts

序号
No.
名称 Description
1
2
3
4
5
6
灯具Lamp
活接头 Union
路灯弯杆 Street light pole bending
路灯杆 Road Pole
基座内装镇流器 Ballast built base
防爆灯安装件 Explosion-proof lamp mounting

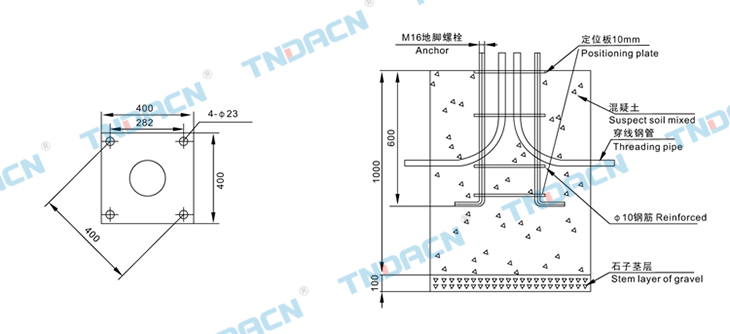

路灯基座混泥土示意图 Schematic diagram of the base concrete street
