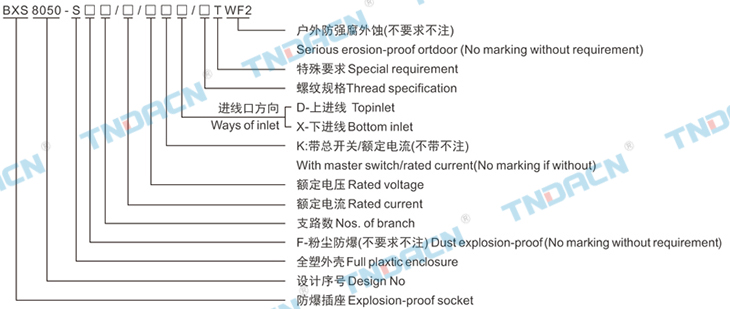

型号含义 Modelimplication

适用范围 Applications

1.1区、2区或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC类爆炸性气体环境或可燃性粉尘环境；
3.强腐蚀气体和粉尘环境；
4.户内、户外(IP65、IP66*)；
5.温度组别：T1~T4/T5/T6；
6.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1&2or zone 20、21、22；
2.Explosive gas atmospheres: classⅡA,ⅡB,ⅡC or flammabledust atmospheres;
3.Serious erosive gas environment;
4.Indoor or ortdoor(IP65,IP66*);
5.Temperature class:T1~T4/T5/T6;
6.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

产品特点 Features

1.插座箱外壳采用高强度玻璃纤维不饱各聚酯树脂压制而成，具有耐腐蚀、抗冲击、热稳定性好、外形美观等特点；
2.箱外壳采用凹凸结构，具有防爆、防腐、防尘、防水等性能；
3.箱体内装防爆电器元件，箱壁上装面板式防爆插座，可根据需要组成不同的回路数，不同电压电流等；
4.可以根据用户要求加装漏电保护。
产品特点 Features
1.The enclosure is pressed by glass fibre unsaturated polyester resin with high intensity, erosion-proof and perfect thermalstability properties, fine ortline;
2.Sagging structure enclosure, with explosion, erosion, dust and water-proof functions;
3.Built in explosion-proof electric components, explosion-puoof socket fitted on the panel can be arranged to different circuitswith different voltage and current;
4.Creepage proteciton device can be fitted on request

主要技术参数 Main technicl parameters

*.要求IP66，需注明。
IP66 requirements must be marked
注：防爆插接装置参数见(P322~P324)。
Note:Explosion-proof socket device parameters see(P322~P324).

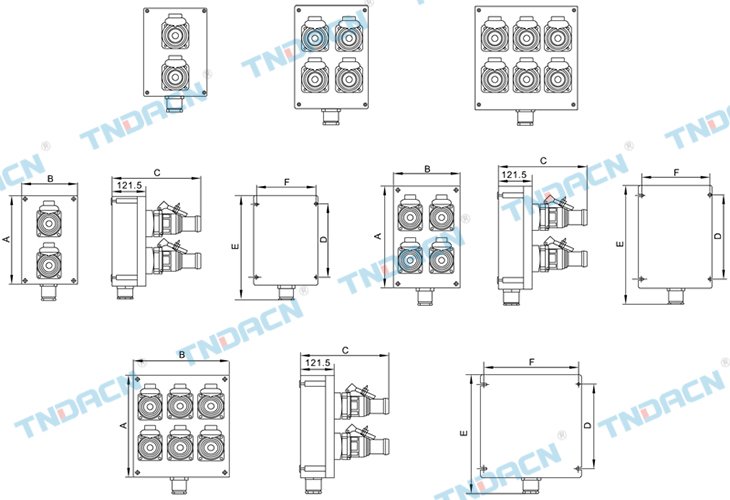

外形及安装尺寸 Outline & installation dimensions
